Oneida 3HP V-System 3000 55 Gal. Freestanding HEPA Cyclone Dust Collector

made in usa
Note: shown with optional equipment.

3HP V-System 3000 55 Gal. Freestanding HEPA Cyclone Dust Collector

Quiet, Compact, and Powerful – Ideal for Small Personal Workshops!

This system is ideal for use in small 1-2 man shops operating tools such as lathes, planers, radial/miter saws, and more!

The V-System’s molded static dissipative resin construction speeds up and simplifies system assembly, maximizes airflow performance, and significantly reduces noise levels.

Learn how the V-System helped Kawneer North America improve their production workflows. Read the case study.

Included Features & Components:

  • Industrial 3HP 230V U.S. Made Motor (Only have 110V power?)
  • Magnetic Starter w/ Overload Protector
  • Wireless RF Remote Control Keyfob
  • High-Efficiency Molded Cyclone Separator
  • HEPA-Certified Filter Media
  • Stacking Sound Filter & Drop-in Silencer
  • Compact Steel Angle Frame Stand
  • 55 Gallon Reinforced Steel Dust Bin
  • Dust Sentry™ Bin Fill Level Indicator
  • D.I.Y. Ductwork Design Guide
  • 1 Year Limited Warranty
Specifications
Horsepower:
3HP
Motor Type:
U.S. TEFC Motor
Motor Service Factor:
1
Voltage:
230V
Recommended Breaker Size:
20A
Amperage (Typical):
13A
Phase (Pre-Wired):
1-Phase
Frequency:
60Hz
Frequency:
NEMA 6-20 - 250V/20A
Power Cord Length:
10 feet
Impeller Type:
Single-piece, backward inclined, non-sparking/non-ferrous
Impeller Size:
15" Dia.

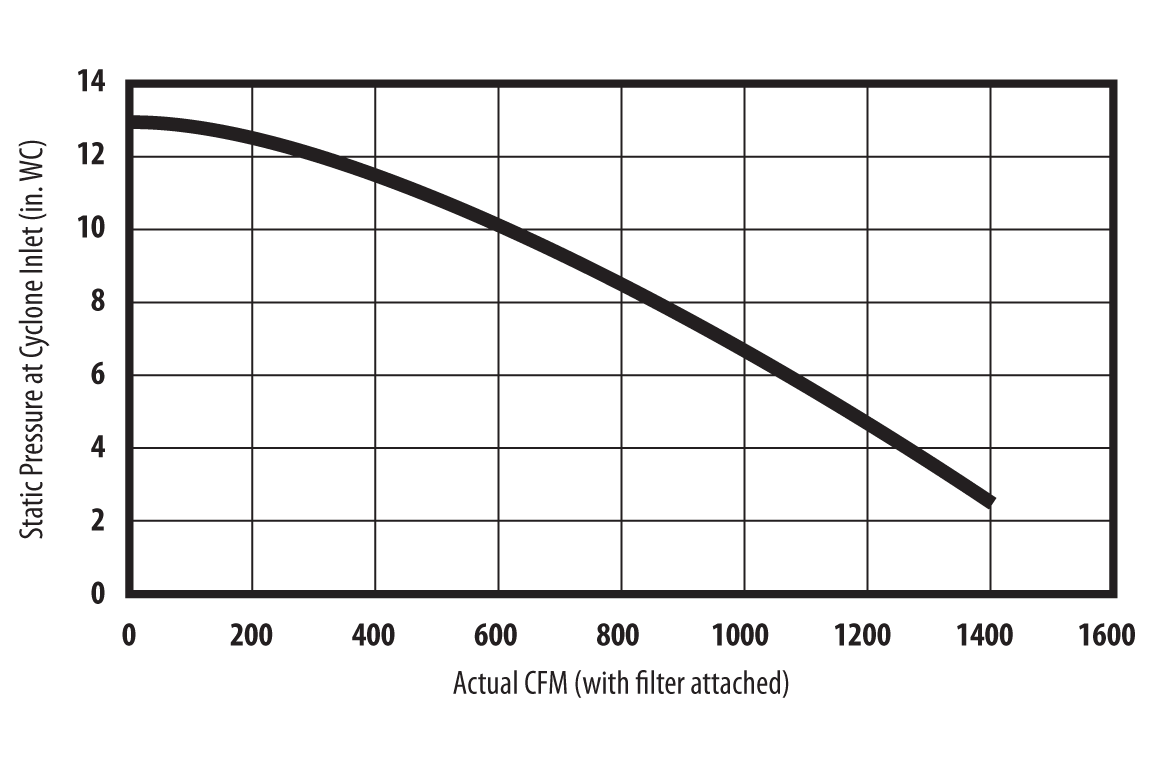

Real CFM Rating:
1,349 Actual CFM at 2.3" WC
Free Fan CFM Rating:
2,940 CFM
Maximum Suction:
13" WC
Max. Open Blast Gates:
2 Gates
Noise Level:
74dBA @ 10 ft
Filter Type:
G.E. H12 HEPA Media
Filtration Efficiency:
99.97% @ 0.3 microns
MERV Rating:
MERV 16 ±
Total Filtration Area:
95 sq ft
Waste Capacity:
35 Gallons
Remote Control:
Included
Primary Build Materials:
Static Dissipative Polyethylene
Static Resistance Rating:
Static Dissipative
Color:
Black
Inlet Size:
7" OD
Outlet Size:
Square ID: 7-3/8"(W) x 6-3/8"(H)
Discharge Size:
7" Dia.
Width:
47"
Depth:
30"
Height:
100"
Height to Center of Inlet:
63"
Contents:
Blower Motor Assembly, Magnetic Starter, Fan Housing, Filter Plenum, Stacking Sound Filter, Internal Silencer, FlameGuard Cartridge Filter, Freestanding Leg Kit, Cyclone Separator, Steel Dust Bin, Bin Level Indicator, Remote Control, Hardwar
Country of Manufacture:
United States
Warranty Information:
1 Year Limited Warranty
Applicable Patents:
US Pat. #8496719, #8377160, #8514090, #9370740, #D908854, #7247180, and Patent Pending
Pricing Options:
Starting at $3,499.00
* All pricing subject to change
  • Specifications
Specifications
Horsepower:
3HP
Motor Type:
U.S. TEFC Motor
Motor Service Factor:
1
Voltage:
230V
Recommended Breaker Size:
20A
Amperage (Typical):
13A
Phase (Pre-Wired):
1-Phase
Frequency:
60Hz
Frequency:
NEMA 6-20 - 250V/20A
Power Cord Length:
10 feet
Impeller Type:
Single-piece, backward inclined, non-sparking/non-ferrous
Impeller Size:
15" Dia.
Real CFM Rating:
1,349 Actual CFM at 2.3" WC
Free Fan CFM Rating:
2,940 CFM
Maximum Suction:
13" WC
Max. Open Blast Gates:
2 Gates
Noise Level:
74dBA @ 10 ft
Filter Type:
G.E. H12 HEPA Media
Filtration Efficiency:
99.97% @ 0.3 microns
MERV Rating:
MERV 16 ±
Total Filtration Area:
95 sq ft
Waste Capacity:
35 Gallons
Remote Control:
Included
Primary Build Materials:
Static Dissipative Polyethylene
Static Resistance Rating:
Static Dissipative
Color:
Black
Inlet Size:
7" OD
Outlet Size:
Square ID: 7-3/8"(W) x 6-3/8"(H)
Discharge Size:
7" Dia.
Width:
47"
Depth:
30"
Height:
100"
Height to Center of Inlet:
63"
Contents:
Blower Motor Assembly, Magnetic Starter, Fan Housing, Filter Plenum, Stacking Sound Filter, Internal Silencer, FlameGuard Cartridge Filter, Freestanding Leg Kit, Cyclone Separator, Steel Dust Bin, Bin Level Indicator, Remote Control, Hardwar
Country of Manufacture:
United States
Warranty Information:
1 Year Limited Warranty
Applicable Patents:
US Pat. #8496719, #8377160, #8514090, #9370740, #D908854, #7247180, and Patent Pending
Pricing Options:
Starting at:

Pricing Options:
Starting at $3,499.00
