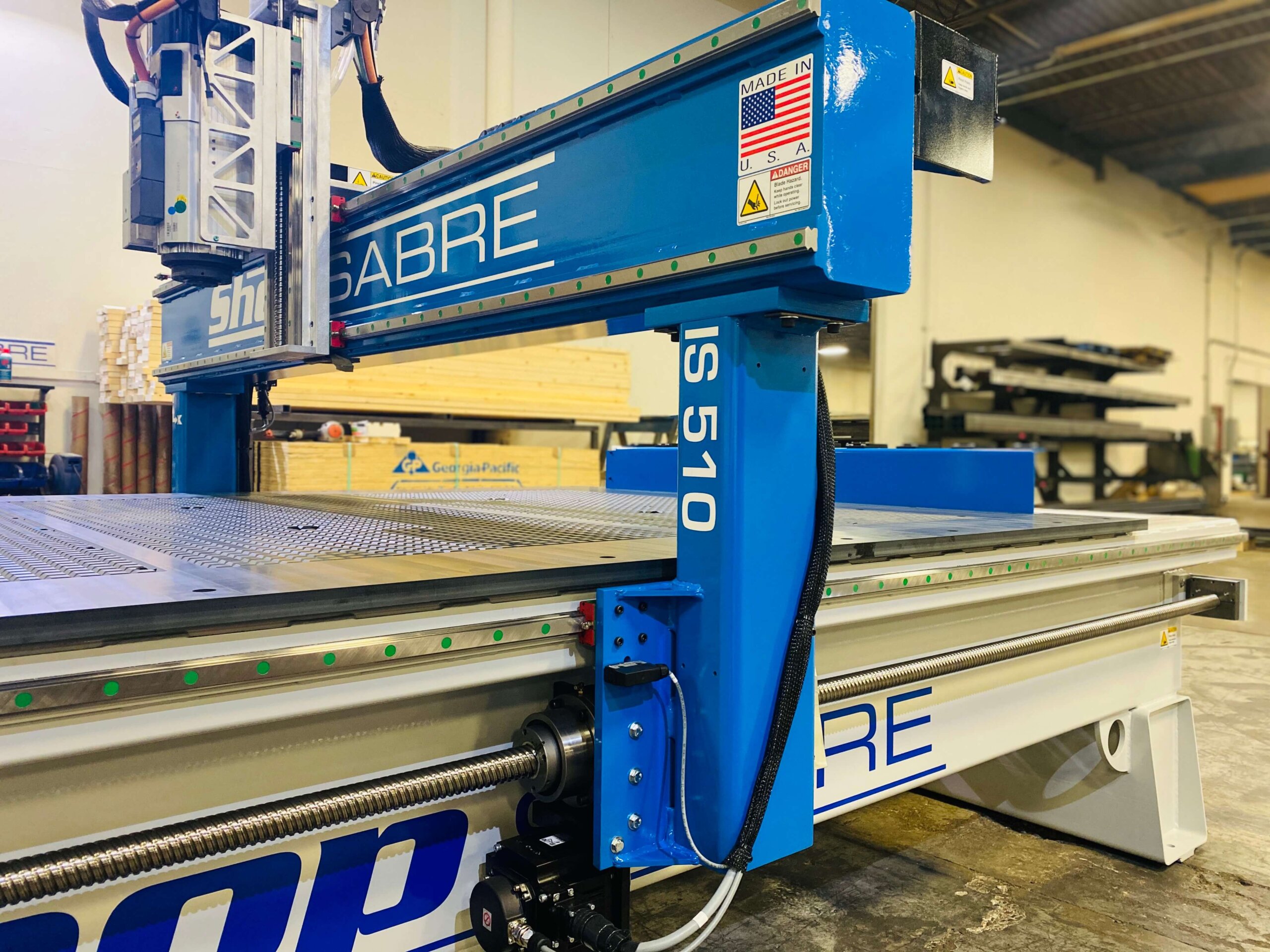

Note: shown with optional equipment.
Machine Tool Grade CNC at a Fraction of the Price!
Truly Industrial Grade at a Price that is unmatched!
The ShopSabre IS series features an Over-Sized Structural Tube Steel one-piece welded frame construction with a massive structural steel tube gantry design. The IS Series is the most advanced CNC Router in the price range competing against machines that retail well beyond $100,000.00 but for a fraction of the Price!
Each machine is FEA Engineered, Aerospace Milled, and Laser Calibrated to ensure accuracy and precision from the ground up. Our IS Series CNC router features our Upgraded Stack Steel Construction and comes equipped with the Industries most advanced Drive Technology – Anti-Backlash Ball Screws in all Axis featuring ShopSabre “Whip Free” Technology. The IS Series also comes standard with Advanced AC Digital Servo Motors with matching amplifiers & Glass Encoder Technology. These features improve cutting quality, cutting forces, and overall machine accuracy. Unlike the closest price competitive solutions this machine has absolutely NO rack and pinion drives giving you a clear advantage over the competition. ShopSabre machines are built to outlast and outperform other machines, no matter how much you use your CNC router, you’ll get the precision you need every time from the ShopSabre IS Series. The IS Series by ShopSabre is perfect for all high production or heavy cutting applications but perfect for any budget. Whether you are nested-based manufacturing or one-off fabrication, the state-of-the-art IS Series features three sizes built precisely for your needs (4’x8’, 5’x10’, and 6’x12’).
Contact us today to learn more about the ShopSabre IS Series CNC routers.
Need Commercial Financing? No problem, with payments as low as $583/month
IS 408
Footprint:
88" x 133" x 93"
Cut Area:
65" x 100" x 12"
Z Clearance:
12" standard
Drive Motors:
AC Servo Motors
Drive System:
Ball Screw X, Dual Y, and Z axis
Pricing Options:
|
Starting at:
|
$40,350 - $56,495
|
|
Finance for as low as
|
$851/month
|
IS 510
Footprint:
97" x 156" x 93"
Cut Area:
75" x 125" x 12"
Z Clearance:
12" standard
Drive Motors:
AC Servo Motors
Drive System:
Ball Screw X, Dual Y, and Z axis
Pricing Options:
|
Starting at:
|
$42,850 - $58,995
|
|
Finance for as low as
|
$903/month
|
IS 612
Footprint:
103" x 179" x 93"
Cut Area:
85" x 145" x 12"
Z Clearance:
12" standard
Drive Motors:
AC Servo Motors
Drive System:
Ball Screw X, Dual Y, and Z axis
Pricing Options:
|
Starting at:
|
$48,350 - $64,495
|
|
Finance for as low as
|
$1,019/month
|
IS 408
Footprint:
88" x 133" x 93"
Cut Area:
65" x 100" x 12"
Z Clearance:
12" standard
Drive Motors:
AC Servo Motors
Drive System:
Ball Screw X, Dual Y, and Z axis
Pricing Options:
|
Starting at:
|
$40,350 - $56,495
|
|
Finance for as low as
|
$851/month
|
IS 510
Footprint:
97" x 156" x 93"
Cut Area:
75" x 125" x 12"
Z Clearance:
12" standard
Drive Motors:
AC Servo Motors
Drive System:
Ball Screw X, Dual Y, and Z axis
Pricing Options:
|
Starting at:
|
$42,850 - $58,995
|
|
Finance for as low as
|
$903/month
|
IS 612
Footprint:
103" x 179" x 93"
Cut Area:
85" x 145" x 12"
Z Clearance:
12" standard
Drive Motors:
AC Servo Motors
Drive System:
Ball Screw X, Dual Y, and Z axis
Pricing Options:
|
Starting at:
|
$48,350 - $64,495
|
|
Finance for as low as
|
$1,019/month
|
Industrial Series (IS) CNC Routers Features
1
2
3
4
5
6
7
8
9
10
1. Industrial Precision Frame
ShopSabre CNC Frames are FEA Engineered and Tested constructed from Massive 10x15 Steel Tubes which are Stacked and Welded for added rigidity giving you more floor contact and better vibration control. Internally the large tubes are also cross braces and stiffened to increase the rigidity!
2. Digital A/C Servo Motors
ShopSabre IS Series Machines come standard with AC Digital Closed Loop Servo Motors for Higher Speeds, Higher Accuracy, and Less Maintenance – Self Monitoring Glass Encoder Technology provides extreme performance– Top Rated Servo Technology in the World!
3. Aero Space Milling Technology
ShopSabre CNC Frames are Run through some of the world’s most advanced processes to assure they are accurate including Precision Milling of contact surfaces for Bearing & Rail Placement along with Ball Screw Mounts. A machine can only be as accurate as it’s foundation so the Frame on a ShopSabre is built to a tolerance above the competition.
4. Ball Screw Technology
ShopSabre IS Machines come standard with 3 Axis Ball Screw Drives with Y Axis (Long Axis) providing Twin Screws to give you 7 times more rigidity than competing machines and unprecedented performance. Ball Screw Technology used at ShopSabre is the latest in the Industry including which gives you less backlash than Rack and Pinion and thanks to our Whip Free Technology it increases the cutting accuracy and gives you superior edge finishes– Ball Screw Technology will outlast most comparable machines by as much as 3 to 4 times longer with very little maintenance required.
5. Vacuum Performance
The Vacuum Option on the ShopSabre IS Series gives you quick and easy zone control with integrated hard pipe connection for increased air flow and the reserve tank built into the frame to assure your vacuum stays consistent!
6. HiFlow Vacuum Technology
ShopSabre CNC HiFlow Vacuum Technology increases the surface flow by as much as 50% over the competition which in the end results in higher holding pressures and power and better performance. Each Vacuum table on the IS Series comes Milled from the factory by your machine cutting head reducing the needs for gaskets and bolts to hold your spoil board down and our exclusive HiFlow Grid makes nested manufacturing a breeze.
7. Super Z Technology
ShopSabre IS Machines are available with the Super Z Technology designed here at ShopSabre CNC. This increases your Z Axis to 16” of Travel while maintaining incredible rigidity thanks in part to our FEA Engineered Stiffener Technology for Tool Plate Strength and our Z Axis Servo Motor Control System and Air Balancer Technology giving you some of the quickest Tool Changes and Drilling cycles in the class!
8. Precision Linear Guide Technology
ShopSabre CNC uses the latest in CNC Bearing Technology with 25MM Linear Guide Rails and Bearings on all Axis. Each axis has 4 Large Body Quad Bearing rollers with wipers to increase the performance of your machine. These Bearings assure the surfaces stay clean while increasing the machine rigidity under load which results in increased performance and reduced maintenance in large part due to the ball bearing technology!
9. Industrial Precision Gantry
Just like our Frames, our gantry construction is constructed of massive heavy wall 6x12 Tubes that have been FEA Designed and Tested to provide higher cutting forces and less vibration. The Bearing Spacing on our gantries are larger than competition’s machines to better handle the routing forces while increasing cut speeds.
10. Industrial Gantry Uprights
Like everything on a ShopSabre, the Gantry uprights are also more industrial. Using High Quality North American Structural Steel these uprights increase the bridge clearance to 12” Standard and provide more rigidity for better cutting quality and versatility.
Details
- Highlighted Features
- Software
- Uses & Applications
- Materials Cut
- Options
- Relevant Education
- Downloads
Highlighted Features
- Italian HSD Electric Fan Cooled Spindle available in 1ph. or 3ph. operation with or without Auto Tool Changer (ATC) Option. (100% Duty Rated)
- Powered 100% by over-sized ball screw drive systems in X, Dual Driven Y Axis (Long Axis) and our Anti-Whip Technology, and Z Axis– Watch our ball screw video!
- Industry Leading Components including Industrial Digital A/C closed loop brushless servo motors with glass encoder technology and individual drive amplifiers with digital tuning – Watch our top servo motor technology video!
- Industrial Welded, stress-relieved, and Aerospace milled structural steel tube frame construction
- Industrial structural steel tube gantry uprights and Steel Cross bridge with Milled Mating Surfaces– Watch our steel vs aluminum video!
- ShopSabre Re-enforced Z Axis Technology with Tool Plate Stiffeners and Optional Super Z Technology!
- High Performance 25MM linear profile guide rails and bearings with Quad Rollers on all axis – Watch Linear Guide Rails
- ShopSabre State-of-the-art Tool Measure Technology – Watch our tool measure video!
- Quick Release Dust Skirt Technology (Ask about Dust Dock Technology for ATC Systems) – Watch Dust Dock Videos
- Vectric VCarve PRO CAD/CAM Full License Software
- Easy-to-learn software with point-and-click technology including AT machine CAD/CAM abilities – Watch our control screen video!
- At Machine Solid State Hard Drive for Easy Job Storage and Machine dedicated high speed multi-axis controller Technology
- Machine Operator Rolling Control Tower with integrated PC System with full Networking and file management via USB and internet connectivity
- Grow with your business by expanding options that meet your exact needs – Watch our expansion equipment video
- ShopSabre CNC name-brand electronics including industrial continuous flex robotic wiring, wire carriers, industrial connectors.
- Advanced/Smart A/C digital super servo motors with individual amplifiers and glass encoder technology
- Precision linear guide rails and bearings on all axes
- MDF table top fastened to structural steel table frame (optional tops available)
- Steel machine operators control stand with casters, computer keyboard tray, mounted emergency stop button, and integrated machine controls with built-in cooling fans and plug and play power connections
- ShopSabre CNC onboard computer system with integrated WINCNC controller hardware and software (upgrade available to touch screen)
- ShopSabre CNC controller hardware and software with point-and-click technology
At machine file management with Solid State hard drive
- E-Stop switch
- Limit switches on all three axes
- Auto tool measure switch for tool calibration and fast tool changing
- USB and internet connectivity
- Standard G-code compatible
- Accepts direct dxf import (other various files accepted in CAD/CAM software)
- Free SabreNation Life-Time Tech Support via Phone, Email, and Remote Diagnostic! – Watch our support video!
- Free SabreNation Life-time Training and SabreNation University Access!
- Included Complete Warranty
- Quick and Effortless Installation – Machine Ships Fully Assembled with No Installation Assistance Required!
- ShopSabre CNC training (ask for details)
- MADE IN THE U.S.A. — American Manufactured & Engineered using FEA Software – Watch our engineering video!
Software
- Vectric V-Carve Pro – Features nesting, 2D, 2.5D, 3D CAM capabilities, Vbit carving, sign making, photo importing, 4th axis capabilities, drill cycles, and much more!
- Drawing to cut file in under 30 seconds
- Easy to learn with included training, tutorials, and support
- Just point and click! Pick cut strategies (Use a large bit to hog out the areas and a small bit to clean up the details
- Easy-to-learn software with point-and-click technology including AT machine CAD/CAM abilities –
- At Machine Solid State Hard Drive for Easy Job Storage and Machine dedicated high-speed multi-axis controller Technology
- Rolling Machine Operator Control Tower and Included PC System with full Networking and file management via USB and internet connectivity
Uses & Applications
The IS Series has unlimited uses and applications, including:
- Prototype manufacturing
- Nested-based manufacturing
- Sign making
- Engineering
- R&D/Job shops
- Cabinet/Door/Closet Manufacturing
- Live Edge
- Musical instrument manufacturing
- Medium duty to High Production
- Solid Surface work
- Non-Ferrous material processing
View All Applications
Materials Cut
The IS Series can accurately cut virtually any hard material including:
- Wood
- Acrylic
- Plastic
- Foam
- Aluminum
- Brass
- and More
Options
Available attachments for ShopSabre CNC router models. Please note that some options may not be available on all models or with other options. Some options may result in limiting the cutting/working areas. Contact us for more details
- Manual Change HSD Spindles in 4HP or 9.3HP
- Auto Tool Changer Systems – 6 or 12 Positions with HSD Spindles in 5HP ISO, 10HP ISO, or 13HP HSK
- Phenolic Table Top
- Full Aluminum T-Slot Table Top
- Hybrid T-Slot/Vacuum Table Top (Available with Phenolic Upgrade)
- Hybrid T-Slot/MDF Table Top (Available with Phenolic Upgrade)
- Vacuum Table with 4 Zones and 8 Table Pipes
- FPZ Vacuum Pump (Single Phase Options Available)
- Becker Vacuum Pump (Single Phase Options Available)
- ShopSabre F4 Single Phase Vacuum Pump (Ask for Details/Limitations)
- Material Thickness Calibration Touch Pad
- Table Reference Pins (Pop-Up Pins) for Sheet Alignment – Availability dependent on Machine Model
- 2D/3D Parts Digitizing Touch Probe
- On-Table 4th Axis /Rotary Indexing Heads
- Touch Screen Controller
- Multi-Tool System (MTS)
- Braille/ADA Sign Attachments/Tooling
- Vision Systems for Registration Mark Reading from Flat Bed Printer
- Tangential Oscillating Knife System
- Dust Collector Options
- Wireless Hand Control Pendant with Jog Wheel
- Boring/Drill Head Attachments (Dependent on Machine Model & May Reduce Working Area)
- Multiple Cutting Head Attachments (2 or More Cutting Heads – May Reduce Working Area)
- Aggregate and C-Axis Attachments for Auto Tool Changer
- Nesting, Cabinet, 3D, 2D, and Photo Recognition Software Packages
- Laser Sight for Quick Zero Reference
- Warning Light Bar
- Private 1 on 1 Training (On-Site and In House)
- Vacuum Pods
- Jtech & Opt Marking Laser Options
- Dust Dock ATC Containment Dust Skirt with Dock
- Dust Dock Manual Change Containment Dust Skirt
- Vortex Tooling Packages
- Tooling Coolant System for Aluminum Cutting
- Chip Blower for Plastic Cutting
- UL/CUL by Request
