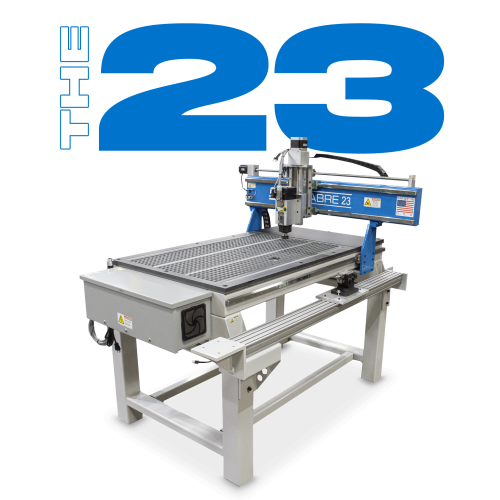

THE 23

SS23 Includes:

Welded Steel Frame, Milled Steel Gantry with 5” Bridge Clearance, Industrial Grade Micro Stepper Motors – 600IPM Rapid.

Ball Screw 3 Axis Motion (XYZ), Self Alignment Technology, Limit Switches on All Axis, Computer Operating System, Vectric VCarve PRO CAD/CAM Software, Lifetime original owner SabreNation Technical Support Plan

  • 2.2HP Italian HSD Electric Fan Cooled Spindle – Single Phase Compatible
  • Spindle Control of RPM & On/Off function
  • Automated Tool Length Calibration
  • Dust collection ready
  • T-Slot with Clamps
  • Industrial Work Bench with Casters
  • Donek D2 Drag Knife
  • Vortex Tool Package for Signs
  • Upgraded Bearings – KK Sweeps
  • Machine Maintenance Kit
  • SabreShield Extended Warranty – 1 Year $350.00 deductible
  • Standard Freight

Ask for details, limitations, and upgrades available.

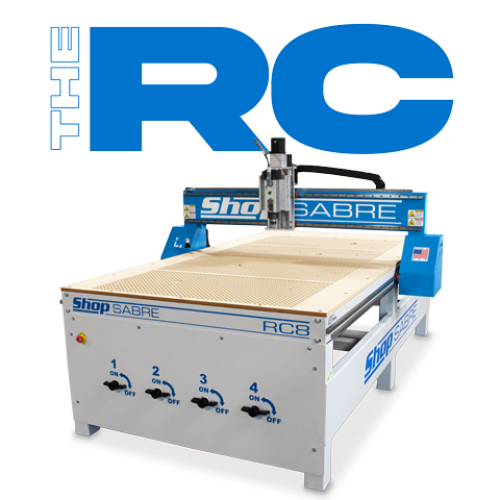

THE RC

RC8 Includes:

Welded Steel Frame, Milled Steel Gantry with 8” Bridge Clearance, Closed Loop Hybrid Motors with Encoders – 1500IPM Rapid.

Ball Screw Z Axis Motion with Rack and Pinion XY Axis, Self Alignment Technology, Limit Switches on All Axis, Computer Operating System, Vectric VCarve PRO CAD/CAM Software, Lifetime original owner SabreNation Technical Support Plan

  • 4HP Italian HSD Electric Fan Cooled Spindle – Single Phase Compatible
  • Spindle Control of RPM & On/Off function
  • Automated Tool Length Calibration
  • Dust collection ready
  • Super Z Technology with Z Axis Air Balancer
  • 4 Zone Vacuum Table with F4 Single Phase Vacuum Pump
  • Auto Z Axis Height Setter
  • Donek D2 Drag Knife
  • Vortex Tool Package for Signs
  • Upgraded Bearings – KK Sweeps
  • Machine Maintenance Kit
  • SabreShield Extended Warranty – 1 Year $350.00 deductible
  • Standard Freight

Ask for details, limitations, and upgrades available.

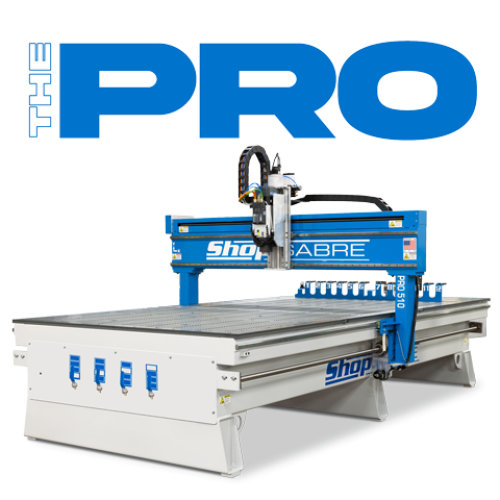

THE PRO

PRO510 Includes:

Welded Steel Frame, Milled Steel Gantry with 12” Bridge Clearance, Closed Loop AC Digital Servo Motors with Glass Encoders – 1200IPM Rapid.

Ball Screw 3 Axis Motion (XYZ), Self Alignment Technology, Limit Switches on All Axis, Computer Operating System with Control Stand, Vectric VCarve PRO CAD/CAM Software, Lifetime original owner SabreNation Technical Support Plan

  • 5HP Italian HSD Electric Fan Cooled Spindle with Auto Tool Changer – Single Phase Compatible
  • 12 Tool Positions with Cones, Collets, and Set of Tool Wrenches
  • Spindle Control of RPM & On/Off function
  • Automated Tool Length Calibration
  • Dust collection ready
  • Super Z Technology with Z Axis Air Balancer
  • 4 Zone Vacuum Table with Becker 17.7HP Pump (3Phase) Available with Single Phase.
  • Phenolic Tabletop
  • 5 Pneumatic Steel Sheet Alignment Reference Pins
  • Motor Starter – 208V – 240V.
  • Auto Z Axis Height Setter
  • Vortex Tool Package for Signs
  • Upgraded Bearings – KK Sweeps
  • Machine Maintenance Kit
  • SabreShield Extended Warranty – 1 Year $350.00 deductible
  • Standard Freight

Ask for details, limitations, and upgrades available.

THE IS

IS510 Includes:

Oversized Welded Steel Frame, Milled Steel Gantry with 12” Bridge Clearance, Closed Loop AC Digital Servo Motors with Glass Encoders – 2100IPM Rapid.

Ball Screw 3 Axis Motion (XYZ), Self Alignment Technology, Limit Switches on All Axis, Computer Operating System with Rolling Control Stand, Vectric VCarve PRO CAD/CAM Software, Lifetime original owner SabreNation Technical Support Plan

  • 10HP Italian HSD Electric Fan Cooled Spindle with Auto Tool Changer – Single Phase Compatible
  • 12 Tool Positions with Cones, Collets, and Set of Tool Wrenches
  • Spindle Control of RPM & On/Off function
  • Automated Tool Length Calibration
  • Dust collection ready
  • Super Z Technology with Z Axis Air Balancer
  • 4 Zone Vacuum Table with Becker 17.7HP Pump (3Phase) Available with Single Phase.
  • Phenolic Tabletop
  • 5 Pneumatic Steel Sheet Alignment Reference Pins
  • Motor Starter – 208V – 240V.
  • Auto Z Axis Height Setter
  • Vortex Tool Package for Signs
  • Upgraded Bearings – KK Sweeps
  • Machine Maintenance Kit
  • SabreShield Extended Warranty – 1 Year $350.00 deductible
  • Standard Freight

Ask for details, limitations, and upgrades available.
