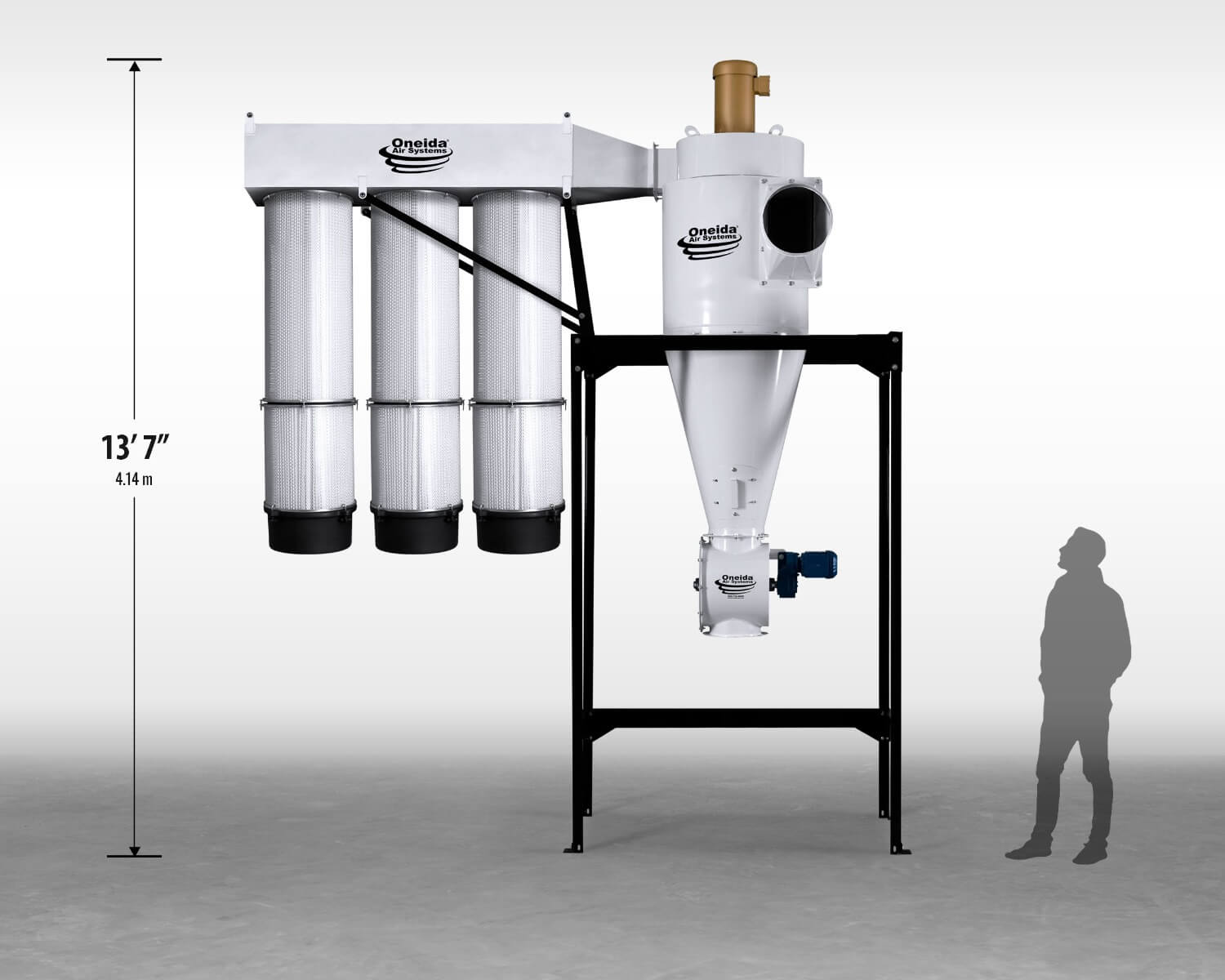

Oneida Air 10HP 230V Direct Drive Cyclone Dust Collector w/ Air Lock – No Drum
Description
Realize the Power of American Manufacturing. Our 10HP Direct Drive system is the workhorse of our industrial line of cyclonic dust collection systems – delivering maximum airflow performance within a compact, quiet, and cost-effective package. Built to last a lifetime using industrial, heavy-gauge steel components, our 10HP is ideal for commercial shops with fixed ductwork and multiple tools in use simultaneously.
Read MoreRead Less
Included Features & Components
- Industrial 10HP U.S. Made Motor
- Backward Inclined, Non-Sparking, Cast-Aluminum Impeller
- High-Efficiency 230V / 3-Phase Power
- Magnetic Starter with Overload Protector
- Heavy-Gauge Solid Welded Steel Cyclone Separator with Clean-Out Access Door
- Modular Stacking Spunbond Cartridge Filters
- Real-time Filter Efficiency Pressure Gauge
- Drop-In Acoustic Foam Filter Silencers
- Industrial Angle Iron Frame Stand
- Rotary Air Lock Feeder Valve
- 2 Year Limited Warranty
Specifications
| Horsepower | 10HP |
|---|---|
| Motor Type | U.S. TEFC Motor |
| Motor Service Factor | 1.15 |
| Voltage | 208-230V |
| Amperage (Typical) | 26.2-23.8A |
| Phase (Pre-Wired) | 3-Phase |
| Frequency | 60Hz |
| Power Connector | Bare Wiring (three hot wires & ground) - Licensed Electrician Required |
| Impeller Type | Backward inclined, welded carbon steel |
| Impeller Size | 17" Dia. |

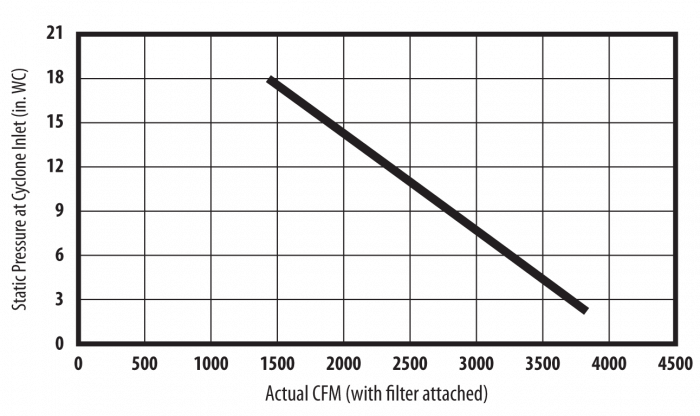

| Real CFM Rating | 3,800 Actual CFM at 2.3" S.P. |
| Noise Level | 84-85 dBA @ 10 ft |
| Filter Type | Izumi Axtar Spunbond Media |
| Filtration Efficiency | 99.9% @ 0.2-2.0 microns |
| MERV Rating | MERV 13 ± |
| 465 sq ft | Customizable |
| Sold Separately | Item #AKR220003 |
| Primary Build Materials | Cold Rolled Steel |
| Welding | Seam Welded |
| Static Resistance Rating | Conductive (Metal) |
| Color | White |
| Inlet Size | Round: 12" I.D. Square ID: 8"(W) x 14"(H) Square OD: 10-1/2"(W) x 16-1/2"(H) |
| Outlet Size | Square ID: 12-1/2"(W) x 10"(H) |
| Discharge Size | 10" I.D. Flange |
| Width | 122" |
| Depth | 33" |
| Height | 163" |
| Height to Center of Inlet | 131" |
| Contents | Blower Motor Assembly, Magnetic Starter, Fan Housing, Cyclone Separator, Clean-out Access Door, Square-to-Round Inlet Adapter, Filter Plenum, 6x Modular Cartridge Filters, Filter Efficiency Gauge, Angle Iron Stand, Rotary Air Lock Valve, Hardware |
| Country of Manufacture | United States |
| Warranty Information | 2 Year Limited Warranty |
| Certifications | Complete system is cETLus certified for indoor use |
| Applicable Patents | View Applicable Patents |
