ArcFlat Weld Table

Starting at $825.00

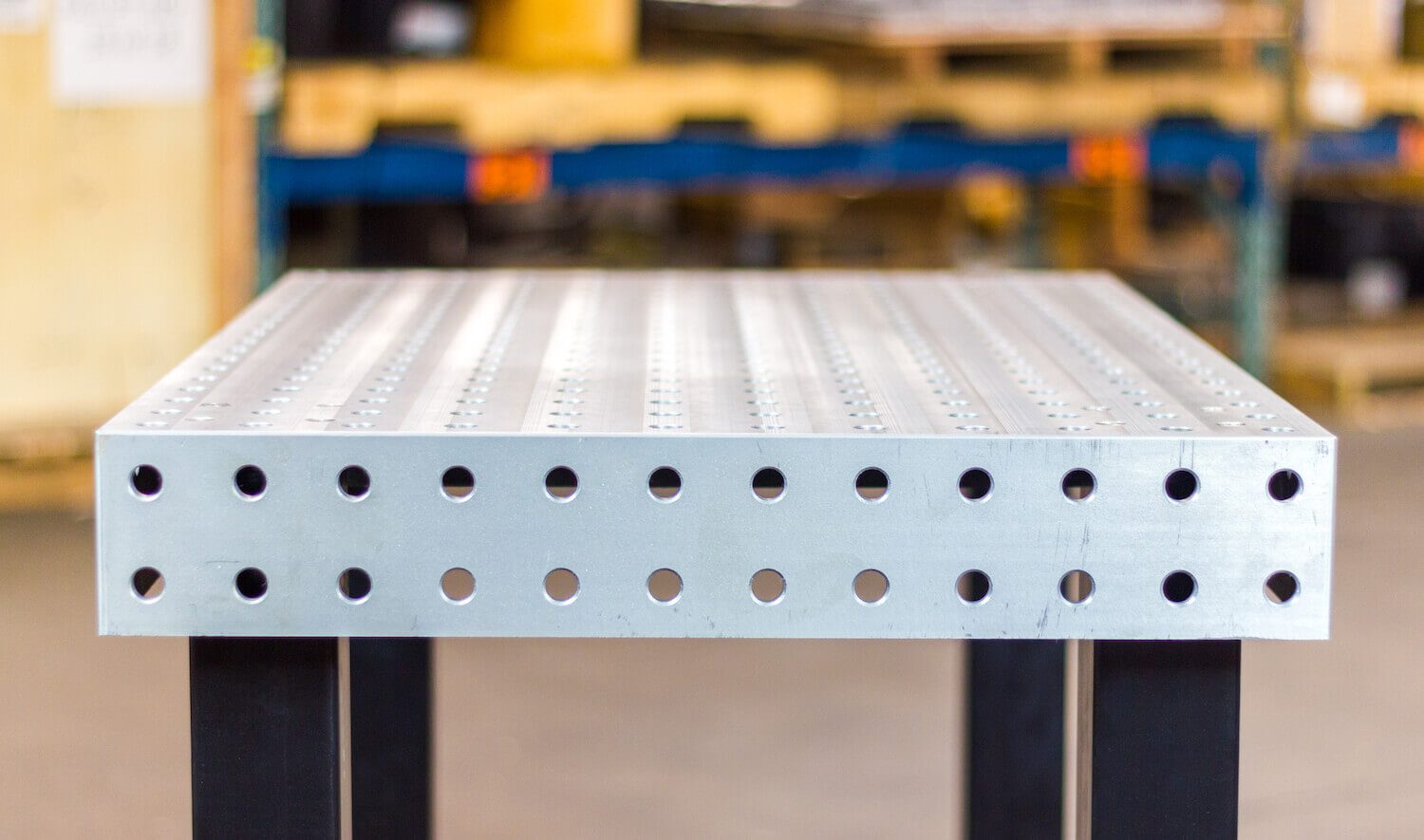

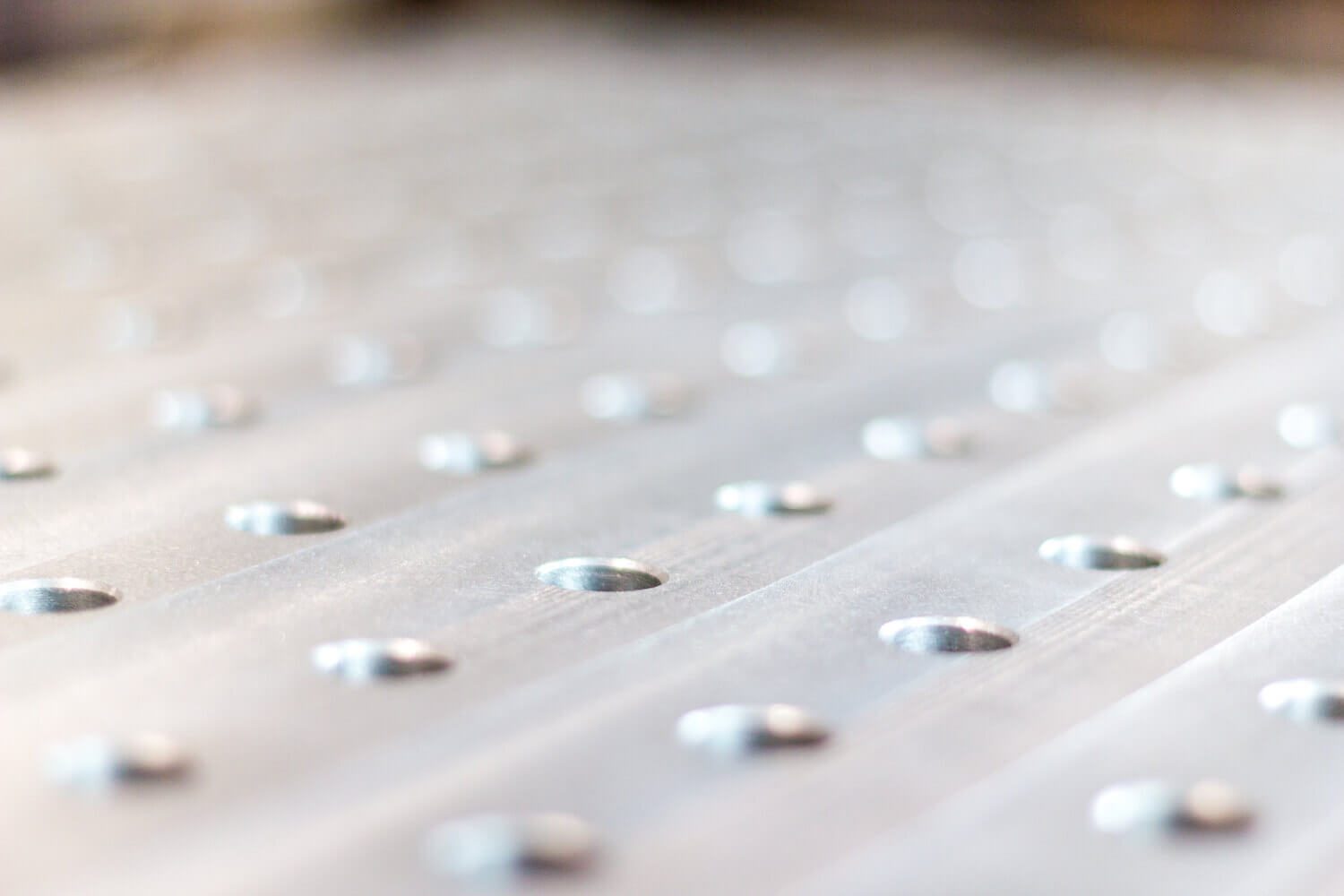

A 24" x 36" Modular Cast Iron Weld Fixture Table featuring 5 perpendicular machined flat surfaces and 336 fixture holes.

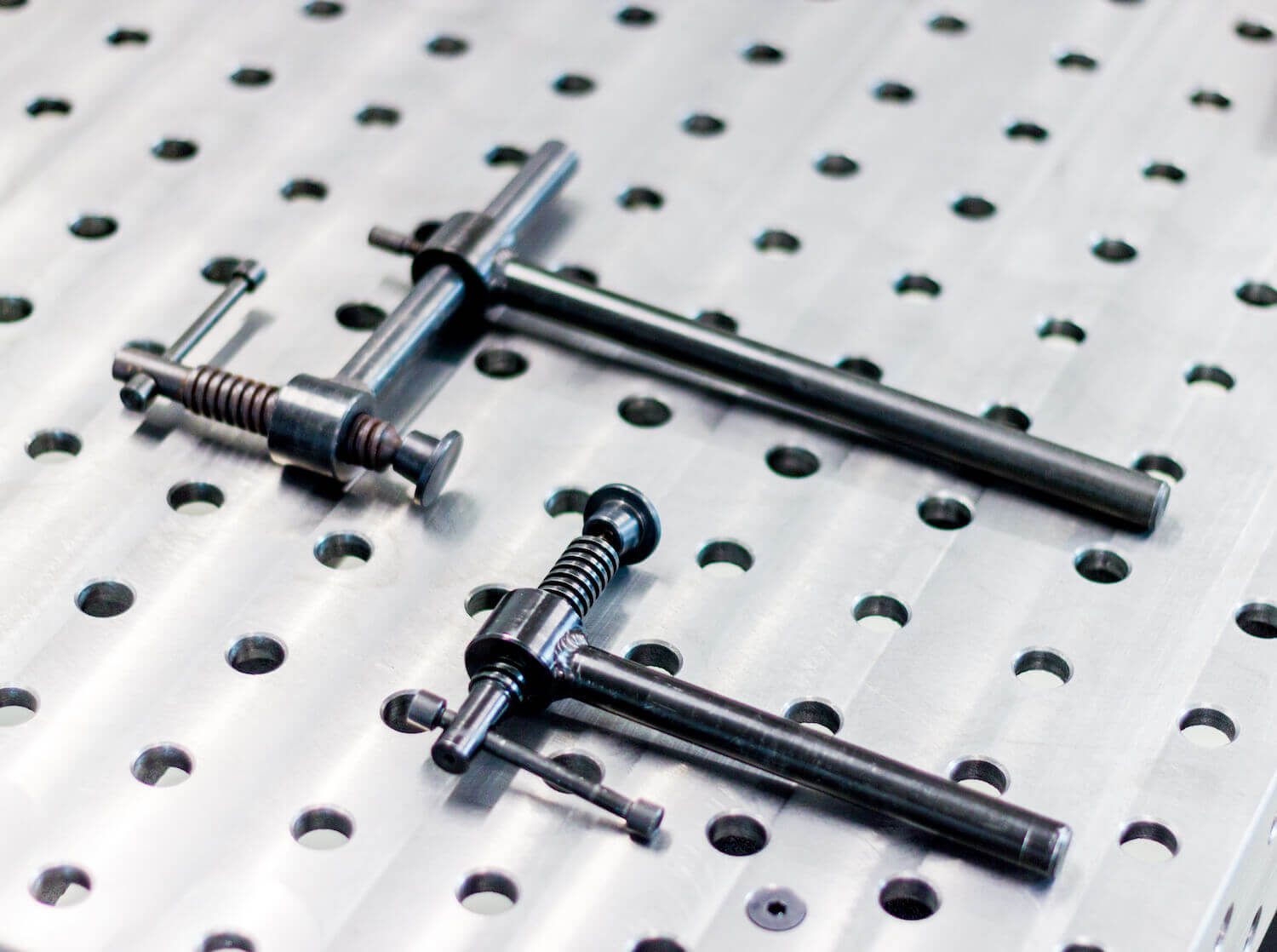

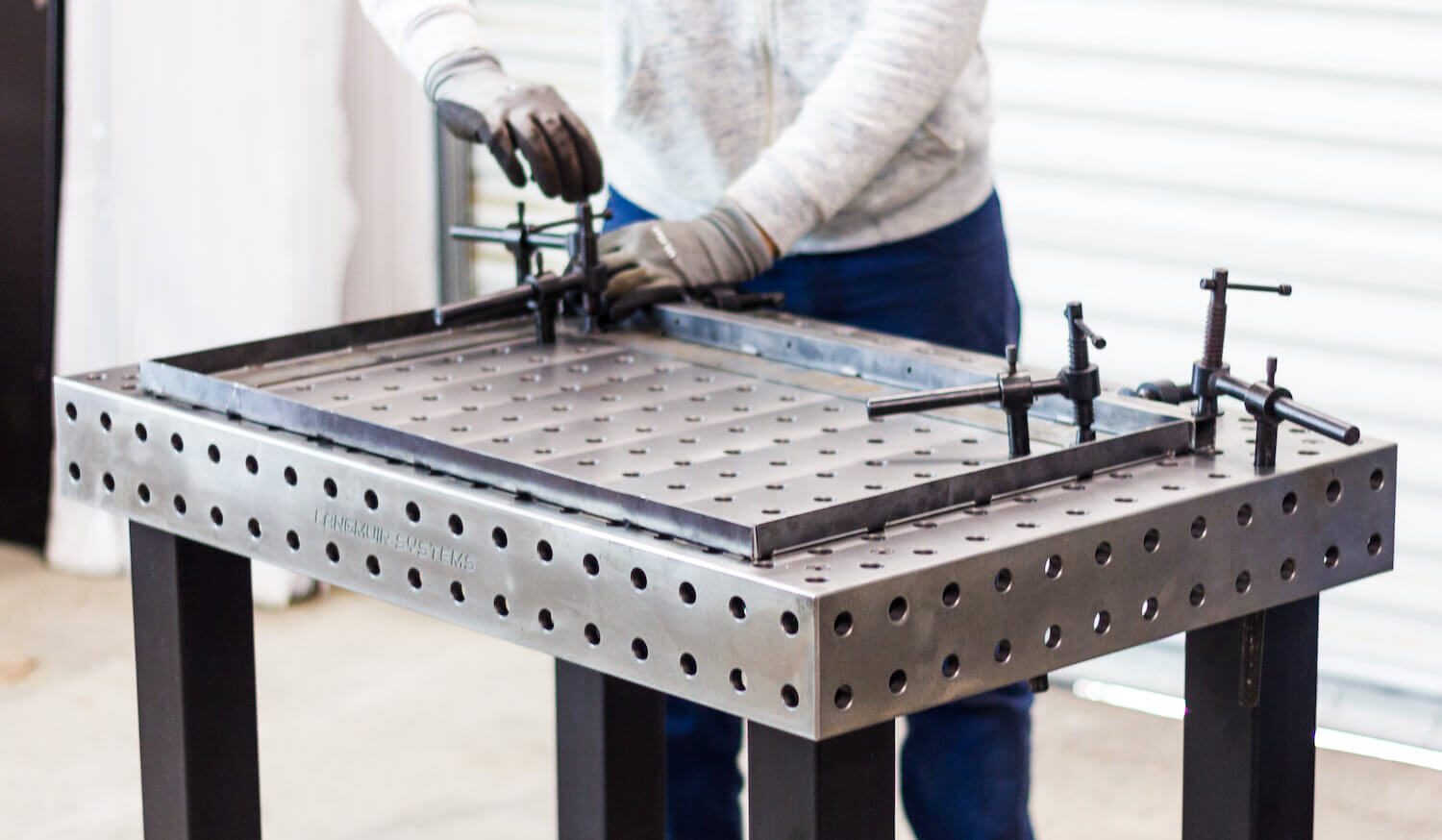

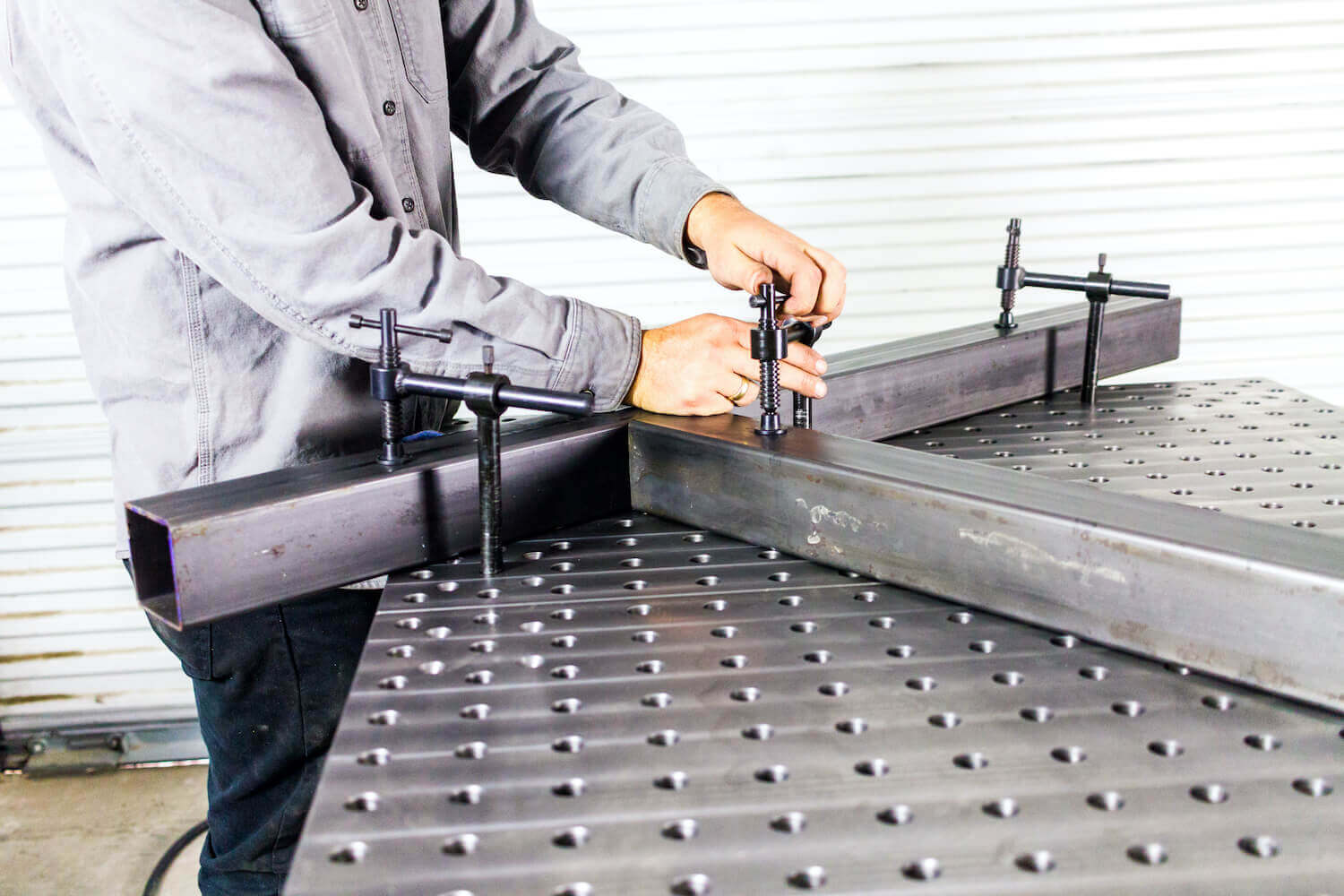

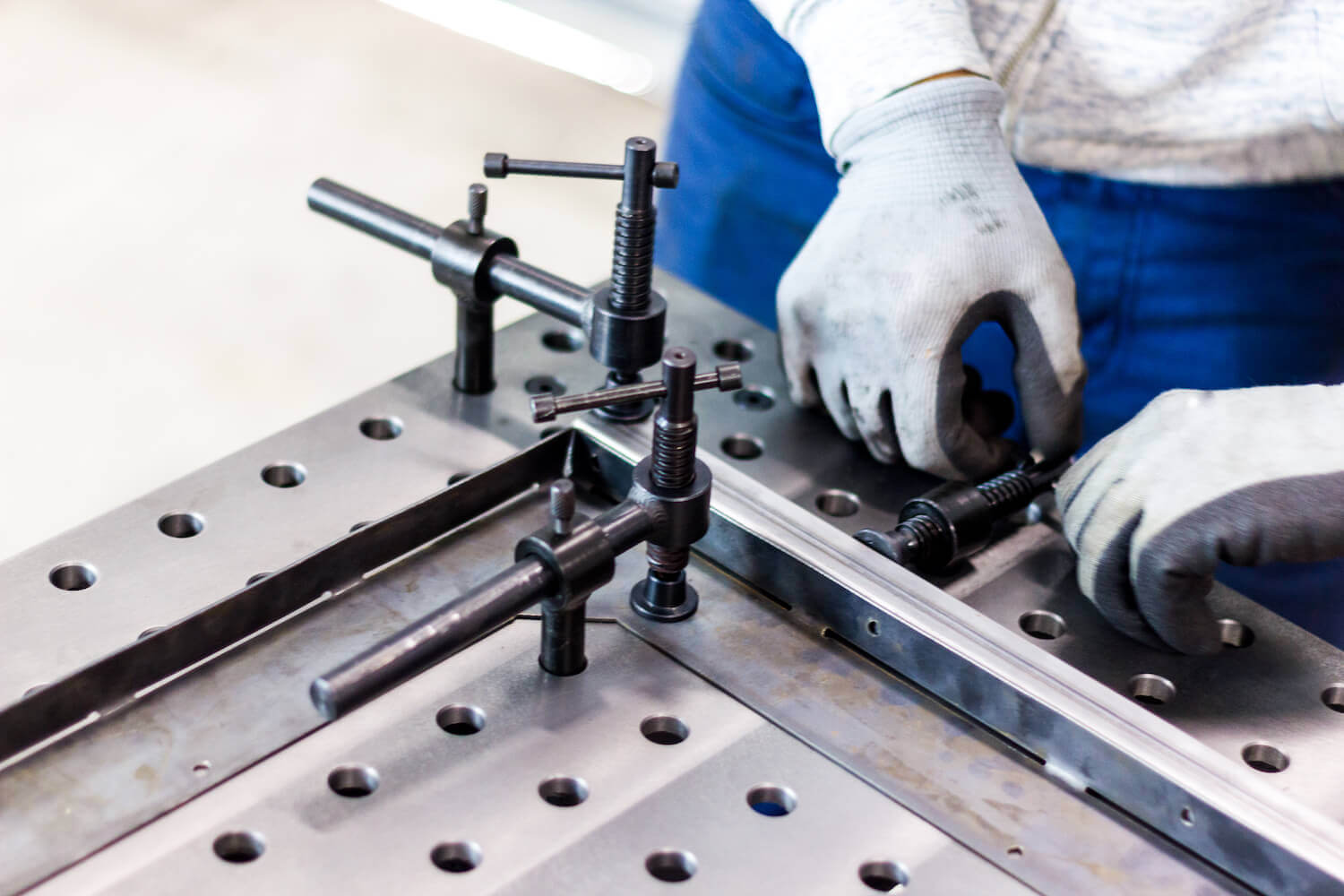

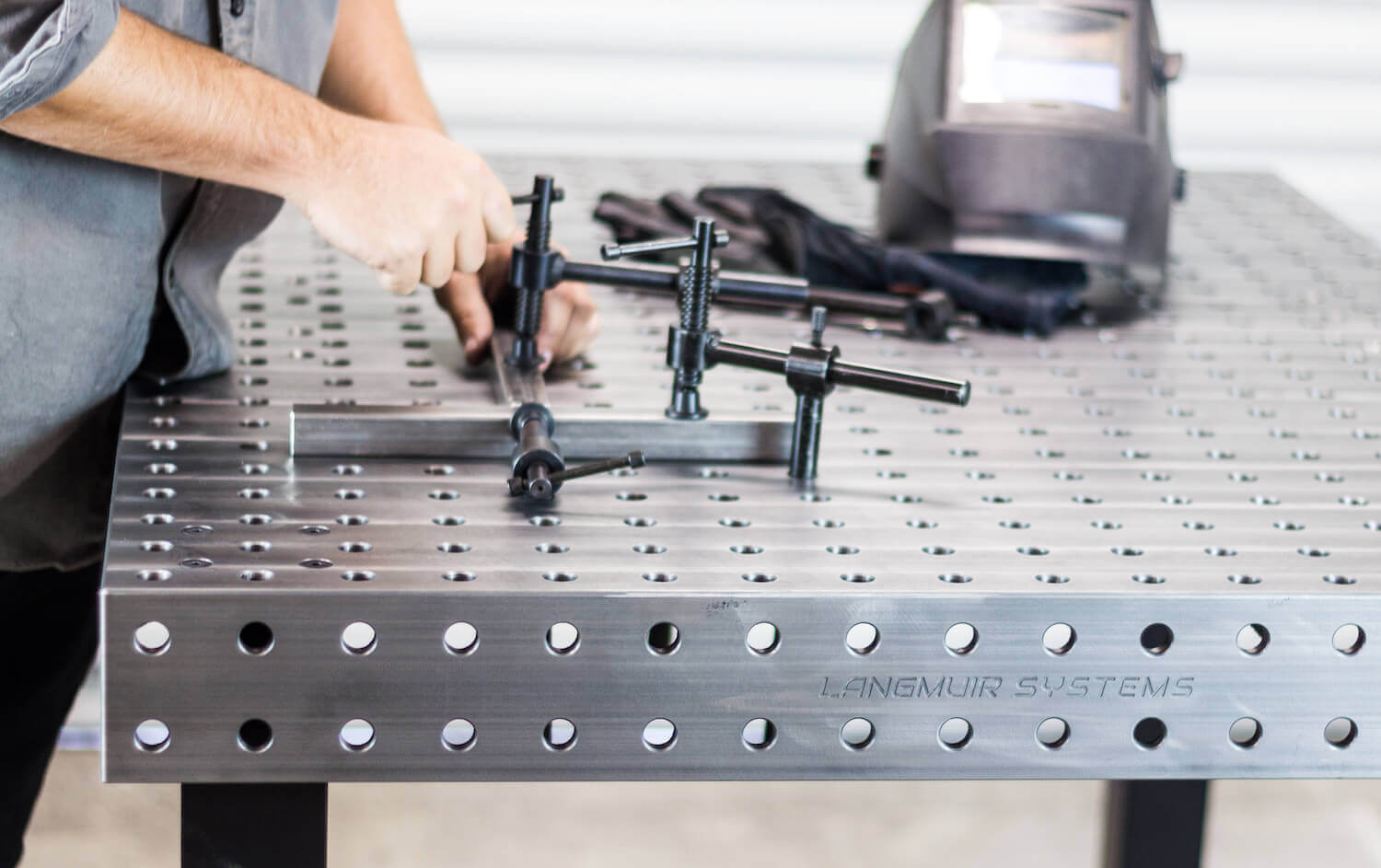

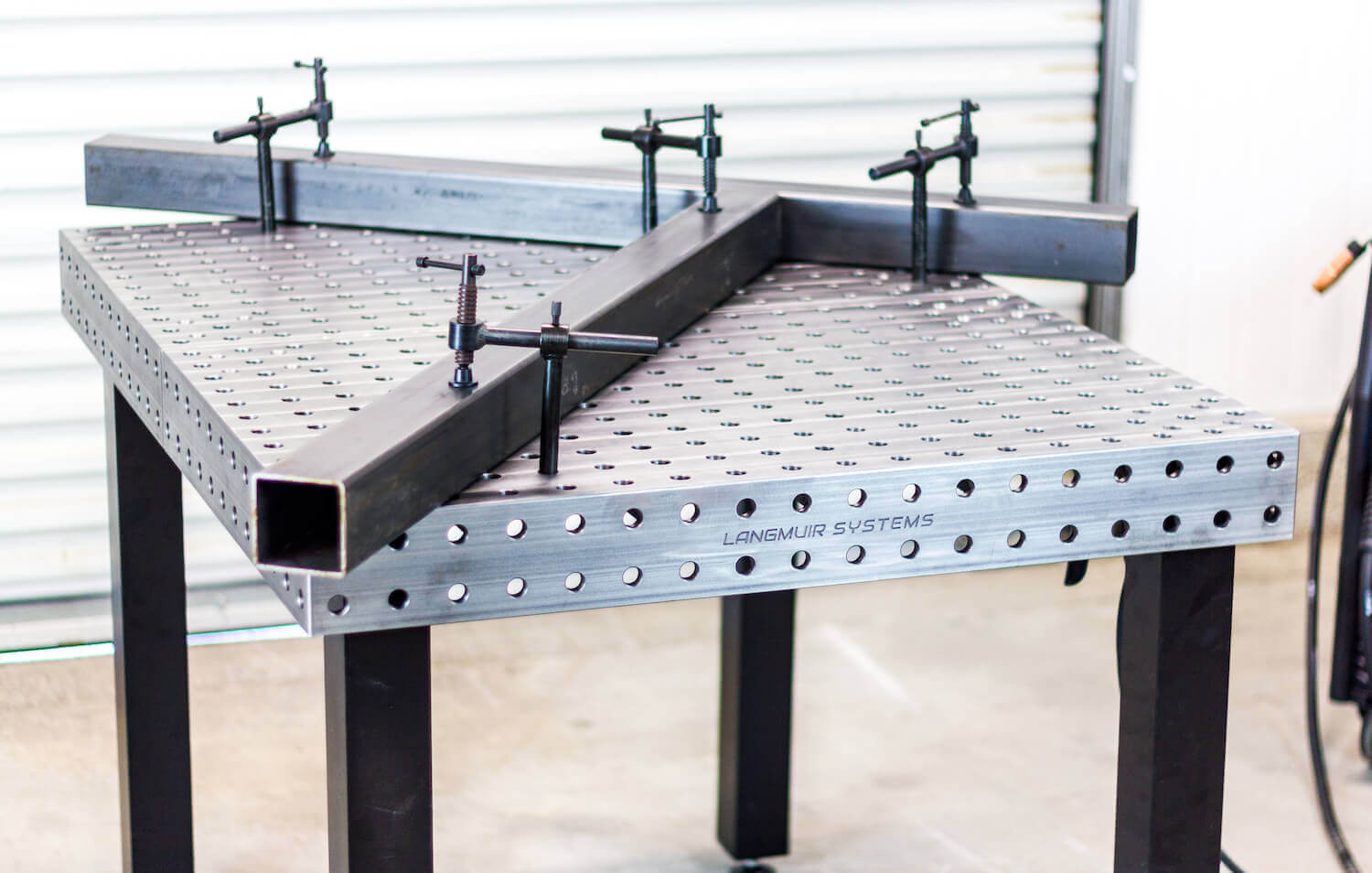

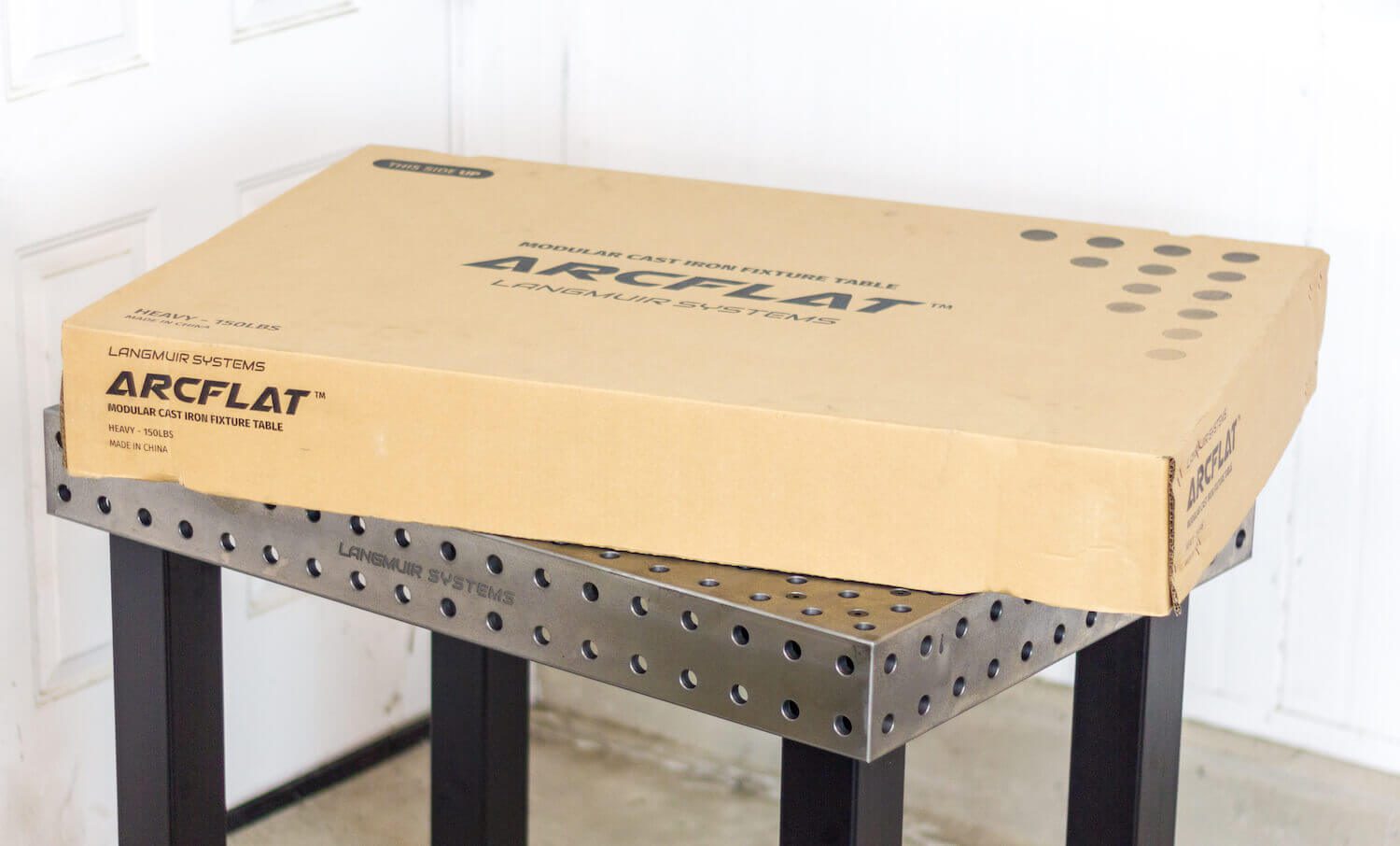

The ARCFLAT cast iron modular fixture table features surfaces machined flat to ±0.0075” and square to 0.1 degrees. ARCFLAT provides fast and easy clamping anywhere on the top and sides of the table. Use Langmuir Systems Modular clamps or third-party 5/8" or 16mm clamps and tooling. ARCFLAT ships via standard ground direct to your door. There's no welding, no warping, and no wasted time compared to flat plate weld-it-yourself tab and slot tables.

Machined from a thick block of nodular cast iron, the ARCFLAT is durable, thermally stable, and dent resistant. Arcflat blocks can bolted together to create any size or shape table. Use the standard size in your garage or create any combination of larger tables.

Read MoreRead Less

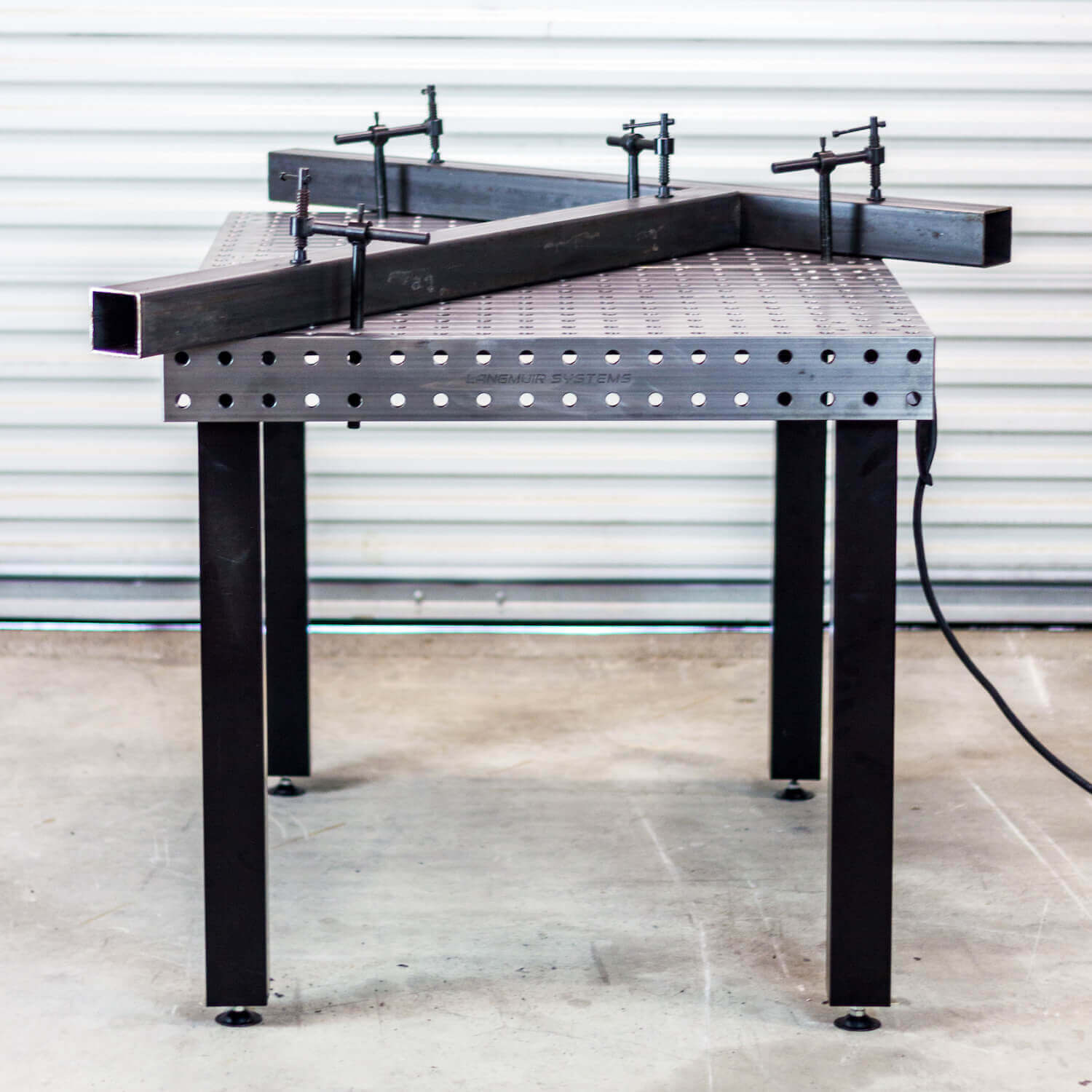

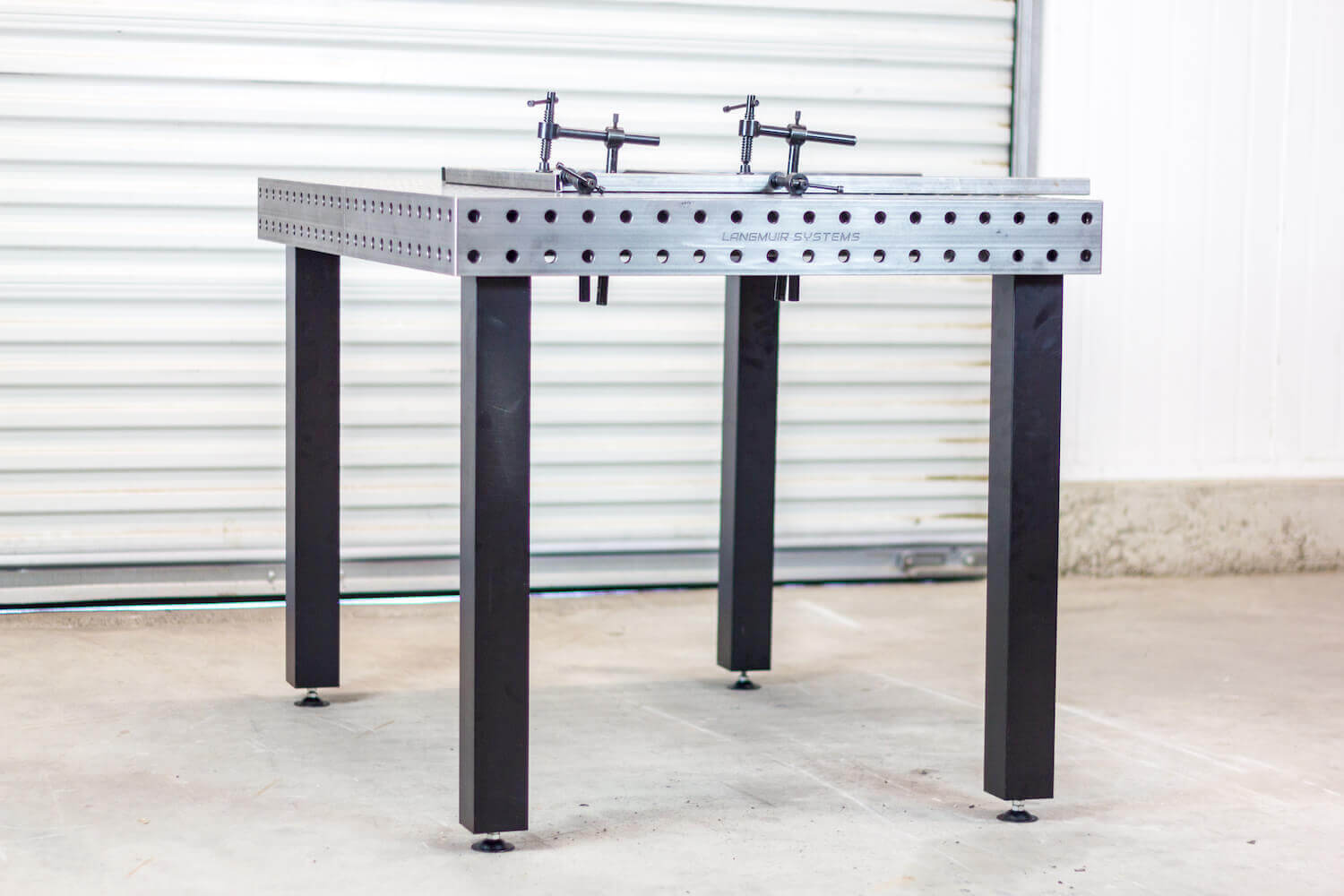

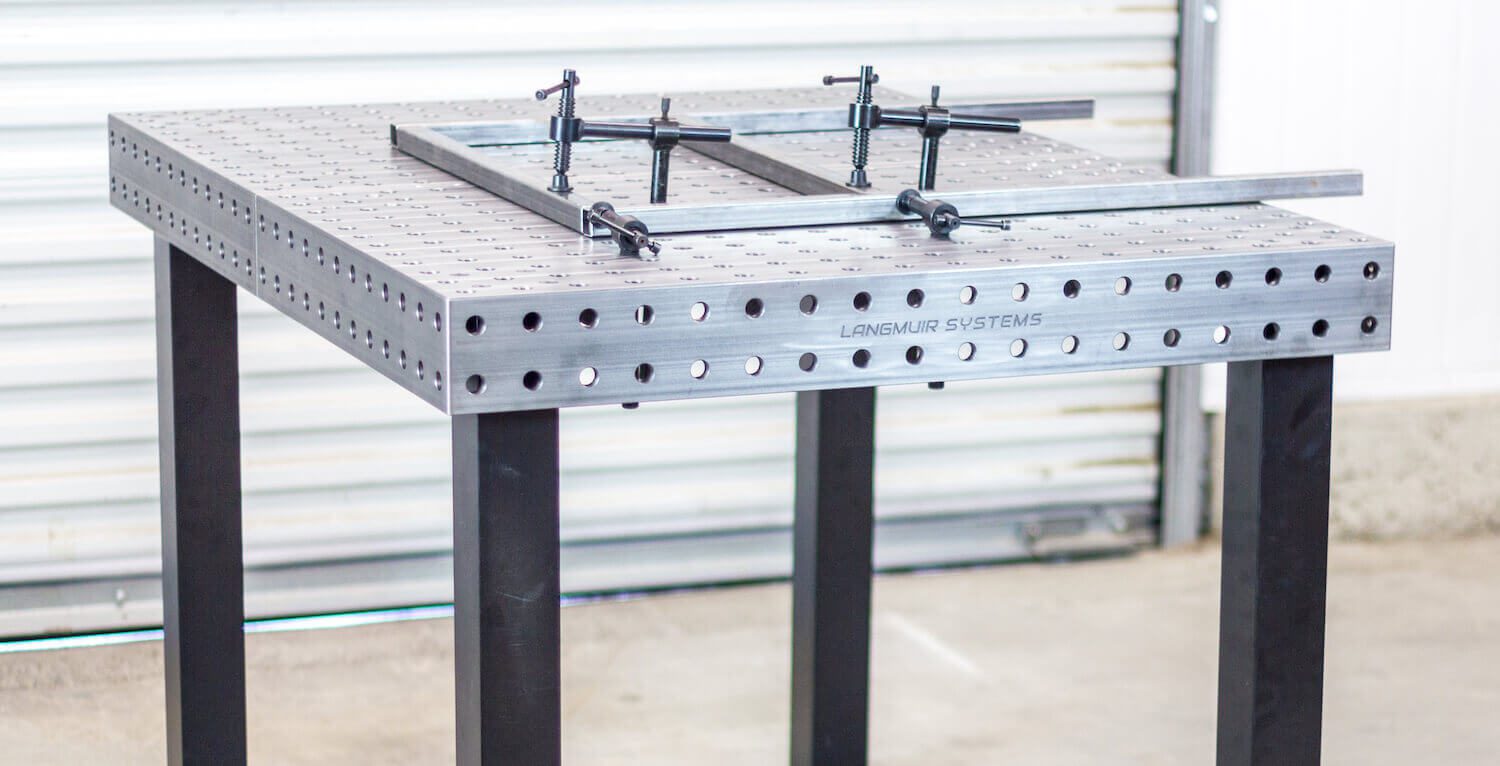

2’ x 3’ with Leg Kit & Clamp Kit
6’ x 3’ with Leg Kit & Clamp Kit


Material Grade Nodular Cast Iron
Surface Flatness ±0.0075"
Dimensions 36" x 24" x 4"
Edge Perpendicularity ±0.1 degrees
Gross Weight 145 lbs.
Hole Size 0.630" +0.010" -0.005"
Static Load Capacity 1000 lbs.
Hole Pattern 2" x 2" grid
