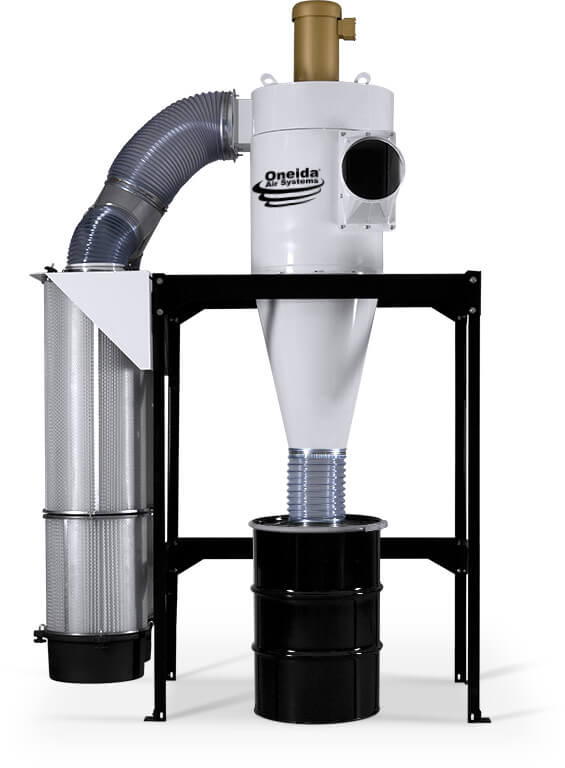

Oneida Air 7.5HP 230V Direct Drive 55 Gallon Cyclone Dust Collector
Description
High Airflow for Multiple Dust Ports. Our 7.5HP Direct Drive system is the workhorse of our industrial line of cyclonic dust collection systems – delivering maximum airflow performance within a compact, quiet, and cost-effective package. Built to last a lifetime using industrial, heavy-gauge steel components, our 7.5HP is ideal for commercial shops with fixed ductwork and multiple tools in use simultaneously. This model is ideal for smaller commercial shops with a strict height restriction or limited waste production. Expect to empty the single 55 gal. drum much more frequently if used with a large planer, drum sander, or CNC machine.
Read MoreRead Less
Included Features & Components
- Industrial 7.5HP U.S. Made Motor
- Backward Inclined, Non-Sparking, Cast-Aluminum Impeller
- High-Efficiency 230V / 3-Phase Power
- Magnetic Starter with Overload Protector
- Heavy-Gauge Solid Welded Steel Cyclone Separator
- Modular Stacking Spunbond Cartridge Filters
- Real-time Filter Efficiency Pressure Gauge
- Drop-In Acoustic Foam Filter Silencers
- Industrial Angle Iron Frame Stand
- 55 Gallon Reinforced Steel Dust Bin
- 2 Year Limited Warranty
Specifications
| Horsepower | 7.5HP |
|---|---|
| Motor Type | U.S. TEFC Motor |
| Motor Service Factor | 1.15 |
| Voltage | 208-230V |
| Amperage (Typical) | 19-17.2A |
| Phase (Pre-Wired) | 3-Phase |
| Frequency | 60Hz |
| Power Connector | Bare Wiring (three hot wires & ground) - Licensed Electrician Required |
| Impeller Type | Single-piece, backward inclined, non-sparking/non-ferrous, cast aluminum alloy. |
| Impeller Size | 16-1/2" Dia. |

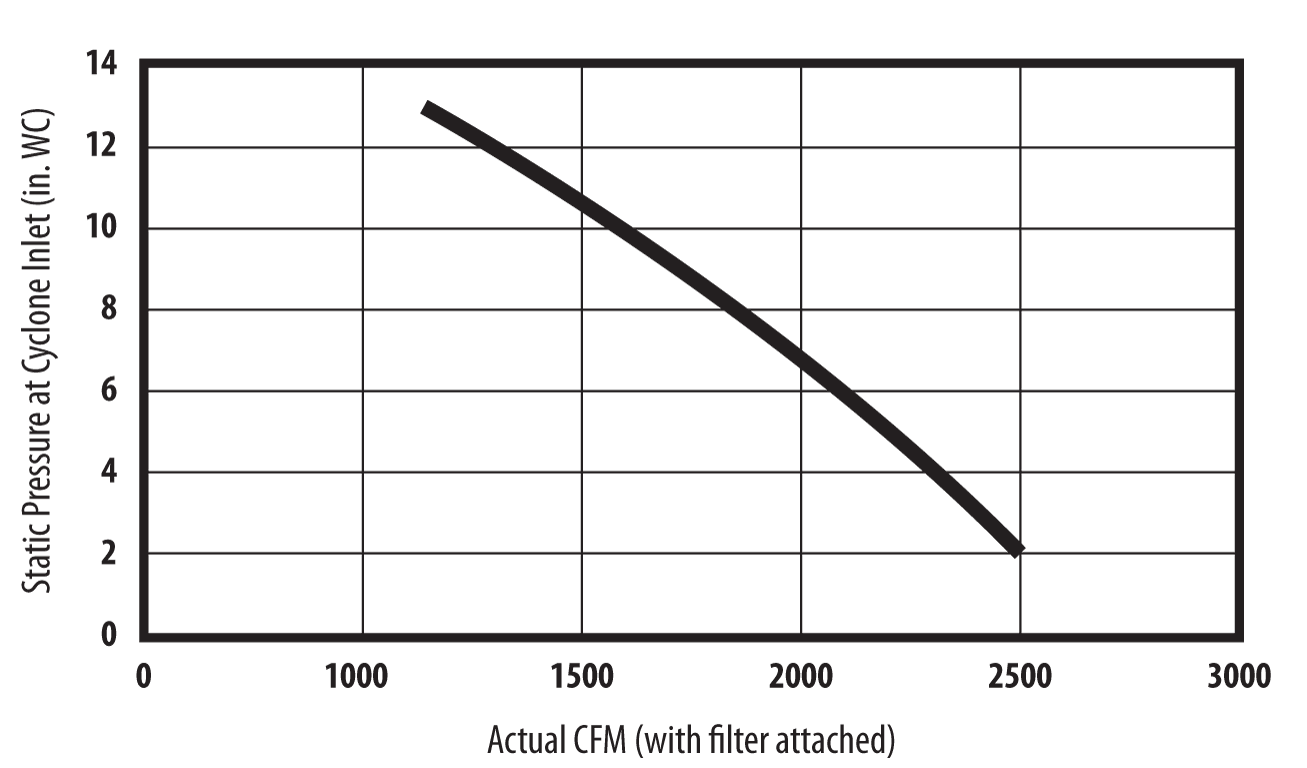

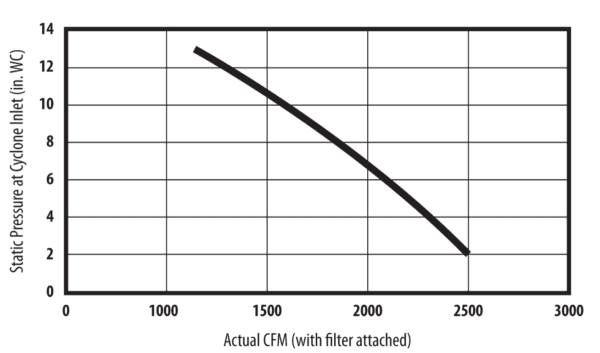

| Real CFM Rating | 2,514 Actual CFM at 1.5" S.P. |
| Free Fan CFM Rating | 4,080 CFM |
| Maximum Suction | 13" W.C. |
| Max. Open Blast Gates | 4 Gates |
| Noise Level | 83 dBA at 10ft |
| Filter Type | Izumi Axtar Spunbond Media |
| Filtration Efficiency | 99.9% @ 0.2-2.0 microns |
| MERV Rating | MERV 13 ± |
| Total Filtration Area | 310 sq ft |
| Waste Capacity | 55 Gallons |
| Remote Control | Item #AKR220003 |
| Remote Control Part # | Cold Rolled Steel |
| Primary Build Materials | Seam Welded |
| Static Resistance Rating | Conductive (Metal) |
| Color | White |
| Inlet Size | Round: 10" Dia. Square ID: 6-7/8"(W) x 13-13/16"(H) Square OD: 9-1/4"(W) x 16-3/8"(H) |
| Outlet Size | Round: 12" Dia. Square ID: 10"(W) x 7-1/2"(H) |
| Discharge Size | 10" Dia. |
| Width | 80.3" |
| Depth | 39.2" |

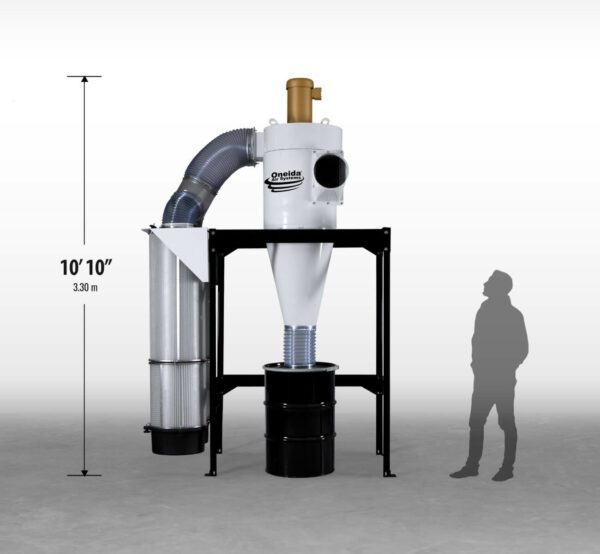

| Height | Position 1: 151-13/16" Position 2: 137-13/16" Position 3: 127-13/16" |
| Contents | Blower Motor Assembly, Magnetic Starter, Fan Housing, Cyclone Separator, Square-to-Round Inlet Adapter, Filter Plenum, 4x Modular Cartridge Filters, Filter Efficiency Gauge, Angle Iron Stand, Steel Dust Bin, Hardware |
| Country of Manufacture | United States |
| Warranty Information | 2 Year Limited Warranty |
| Certifications | Complete system is cETLus certified for indoor use |
| Applicable Patents | View Applicable Patents |
