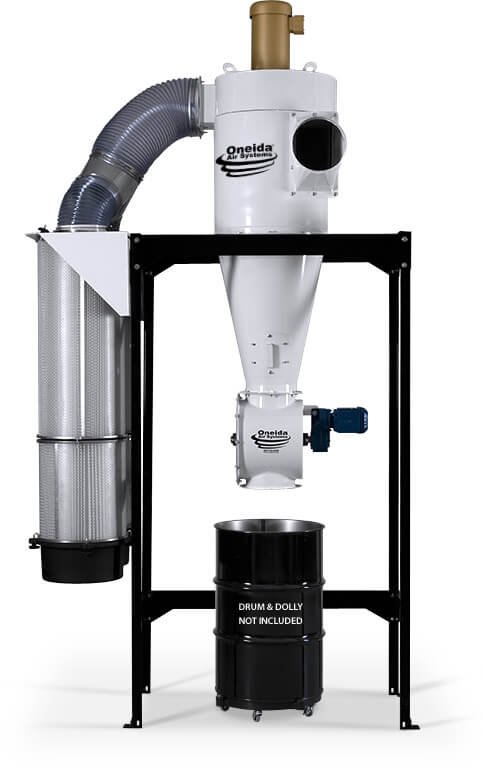

a 7.5 hp airlock

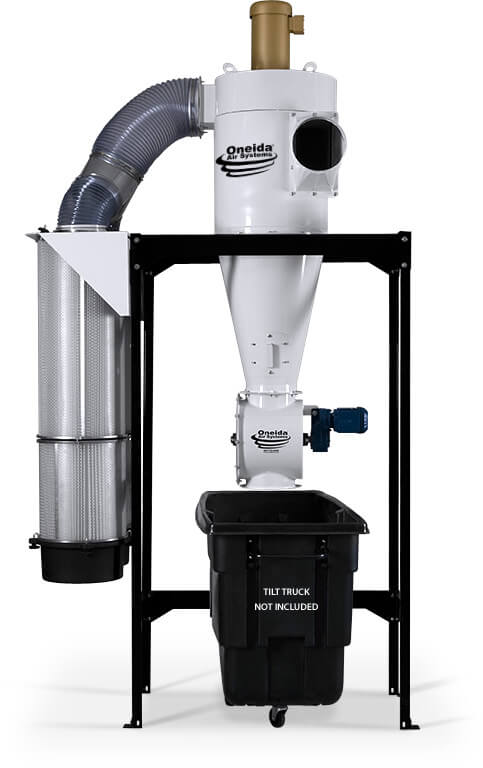

a 7.5 hp airlock with a tilt truck under it

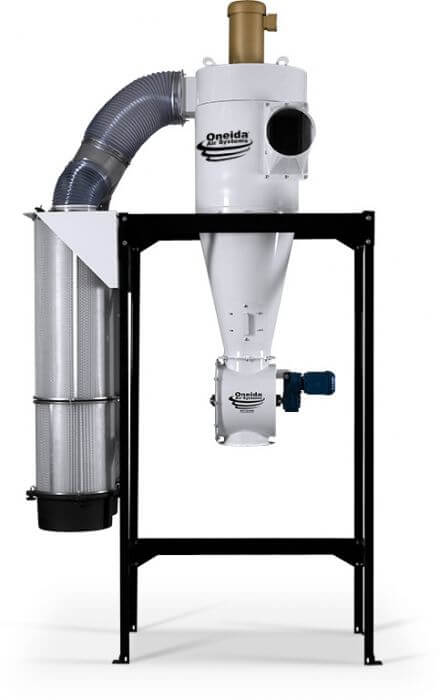

a 7.5 hp direct drive airlock

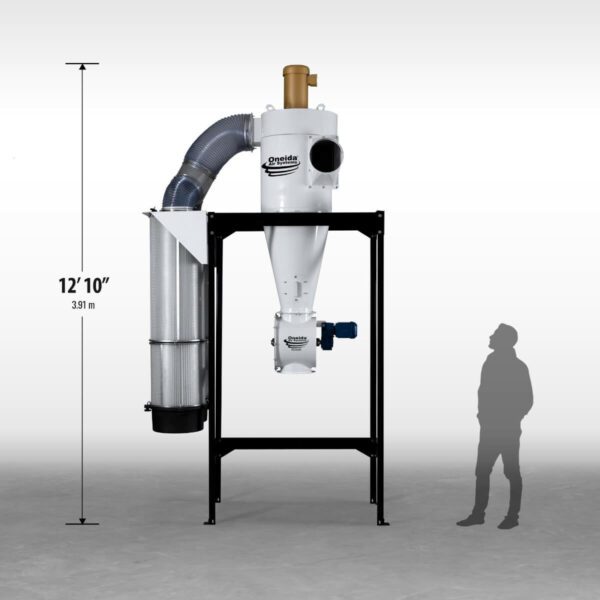

a 7.5hp airlock is 12' 10"

Oneida Air 7.5HP 230V Direct Drive Cyclone Dust Collector w/ Air Lock – No Drum

Included Features & Components

  • Industrial 7.5HP U.S. Made Motor
  • Backward Inclined, Non-Sparking, Cast-Aluminum Impeller
  • High-Efficiency 230V / 3-Phase Power
  • Magnetic Starter with Overload Protector
  • Heavy-Gauge Solid Welded Steel Cyclone Separator with Clean-Out Access Door
  • Modular Stacking Spunbond Cartridge Filters
  • Real-time Filter Efficiency Pressure Gauge
  • Drop-In Acoustic Foam Filter Silencers
  • Industrial Angle Iron Frame Stand
  • Rotary Air Lock Feeder Valve
  • 2 Year Limited Warranty
Category:

Specifications

Horsepower 7.5HP
Motor Type U.S. Baldor® TEFC Motor
Motor Service Factor 1.15
Voltage 208-230V
Amperage (Typical) 19-17.2A
Phase (Pre-Wired) 3-Phase
Frequency 60Hz
Frequency Bare Wiring (three hot wires & ground) - Licensed Electrician Required
Impeller Type Single-piece, backward inclined, non-sparking/non-ferrous, cast aluminum alloy.
Impeller Size 16-1/2" Dia.
Real CFM Rating 2,514 Actual CFM at 1.5" S.P.
Free Fan CFM Rating 4,080 CFM
Maximum Suction 13" W.C.
Max. Open Blast Gates 4 Gates
Noise Level 83 dBA at 10ft
Filter Type Izumi Axtar Spunbond Media
Filtration Efficiency 99.9% @ 0.2-2.0 microns
MERV Rating MERV 13 ±
Total Filtration Area 310 sq ft
Waste Capacity 110 Gallons
Remote Control Sold Separately
Remote Control Part # Item #AKR220003
Primary Build Materials Cold Rolled Steel
Welding Seam Welded
Static Resistance Rating Conductive (Metal)
Color White
Inlet Size Round: 10" Dia. Square ID: 6-7/8"(W) x 13-13/16"(H) Square OD: 9-1/4"(W) x 16-3/8"(H)
Outlet Size Round: 12" Dia. Square ID: 10"(W) x 7-1/2"(H)
Discharge Size 10" Dia.
Width 80.3"
Depth 39.2"
Height Position 1: 151-13/16" Position 2: 137-13/16" Position 3: 127-13/16"
Contents Blower Motor Assembly, Magnetic Starter, Fan Housing, Cyclone Separator, Square-to-Round Inlet Adapter, Filter Plenum, 4x Modular Cartridge Filters, Filter Efficiency Gauge, Angle Iron Stand, Pants Wye Splitter, 2x Steel Dust Bins, Hardware
Country of Manufacture United States
Warranty Information 2 Year Limited Warranty
Certifications Complete system is cETLus certified for indoor use
Applicable Patents View Applicable Patents
