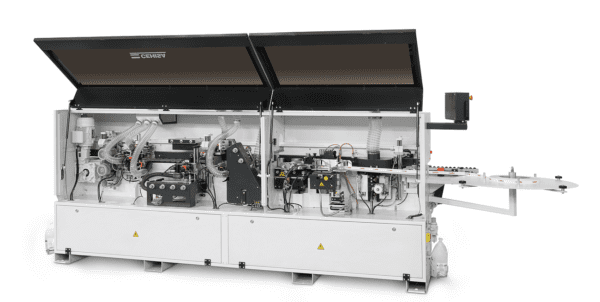

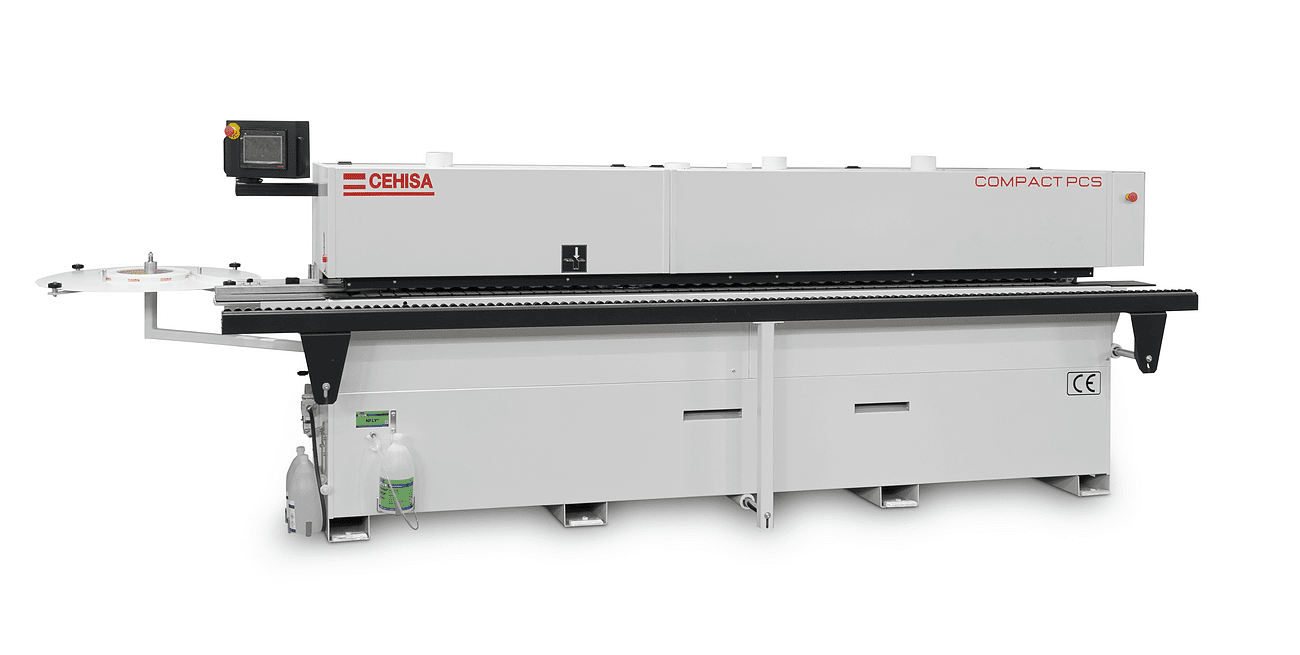

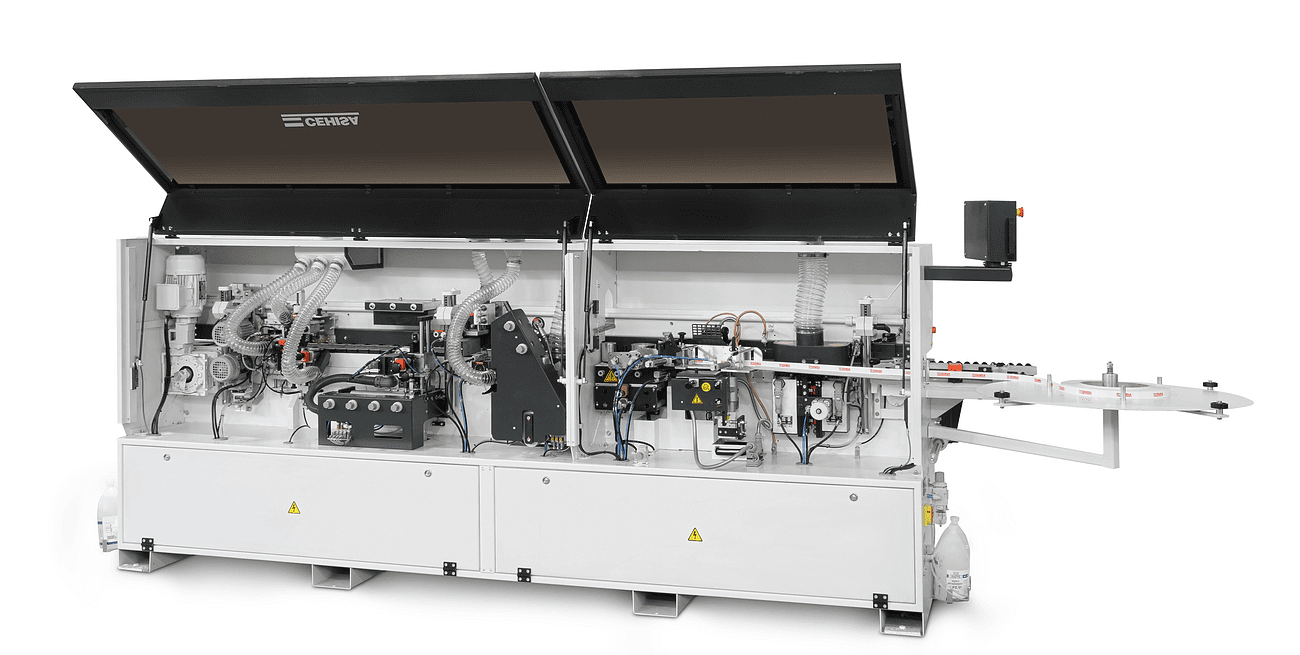

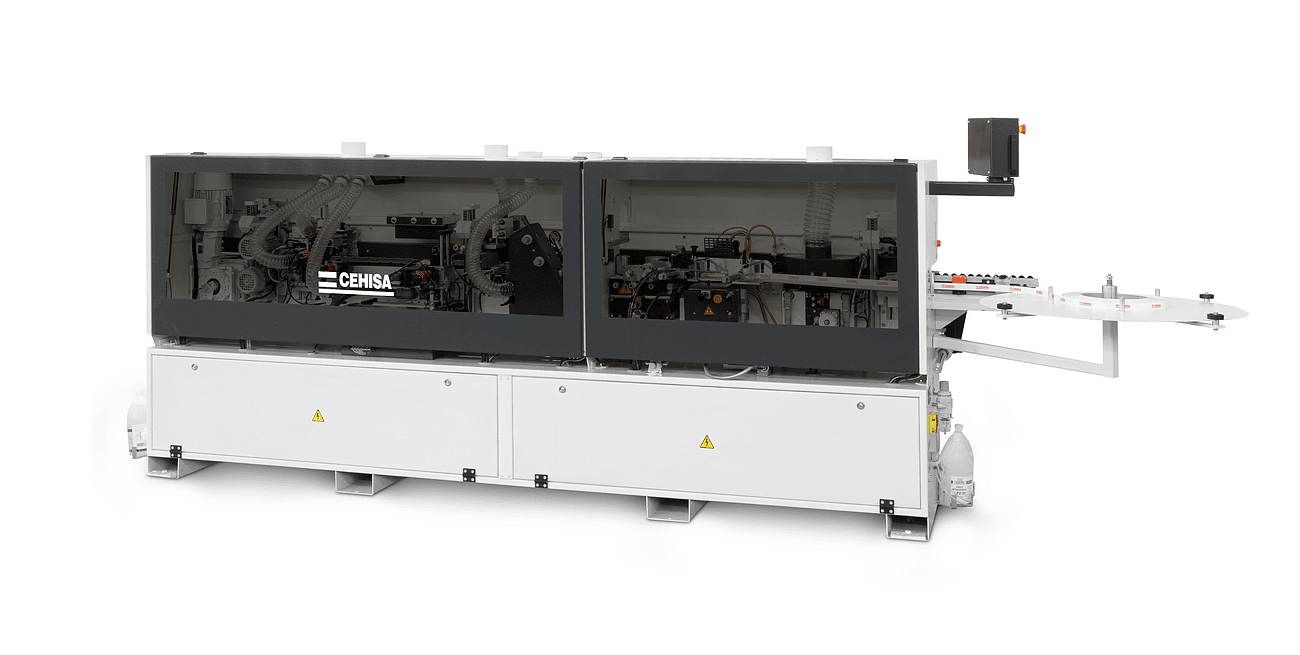

Cehisa COMPACT Series of Edgebanders
Description
Read MoreRead Less
Features
- Particle board, plywood, MDF, from 8 to 60mm thick
- Melamine, PVC, ABS, PP, wood, formica and acrylic. 0.4 to 3mm in rolls and up to 5mm in solid wood
- EVA/PUR/PO and AirFlow System
- HF motors controlled by independent electronic converters, encoder controlled working groups and PLC controlled by TFT touch screen
Downloads
Specifications
| Edging material thickness | 0.4-3mm |
|---|---|
| Solid edging thickness | 5mm (manually fed) |
| Panel thickness | 8-60mm |
| Panel length | 120-unlimited |
| Panel width | 75mm - unlimited (60mm - unlimited optional) |
| Feed speed | 10m/min |
| Working pressure | 6-7kg/cm2 |
| Power | 3 phase |
