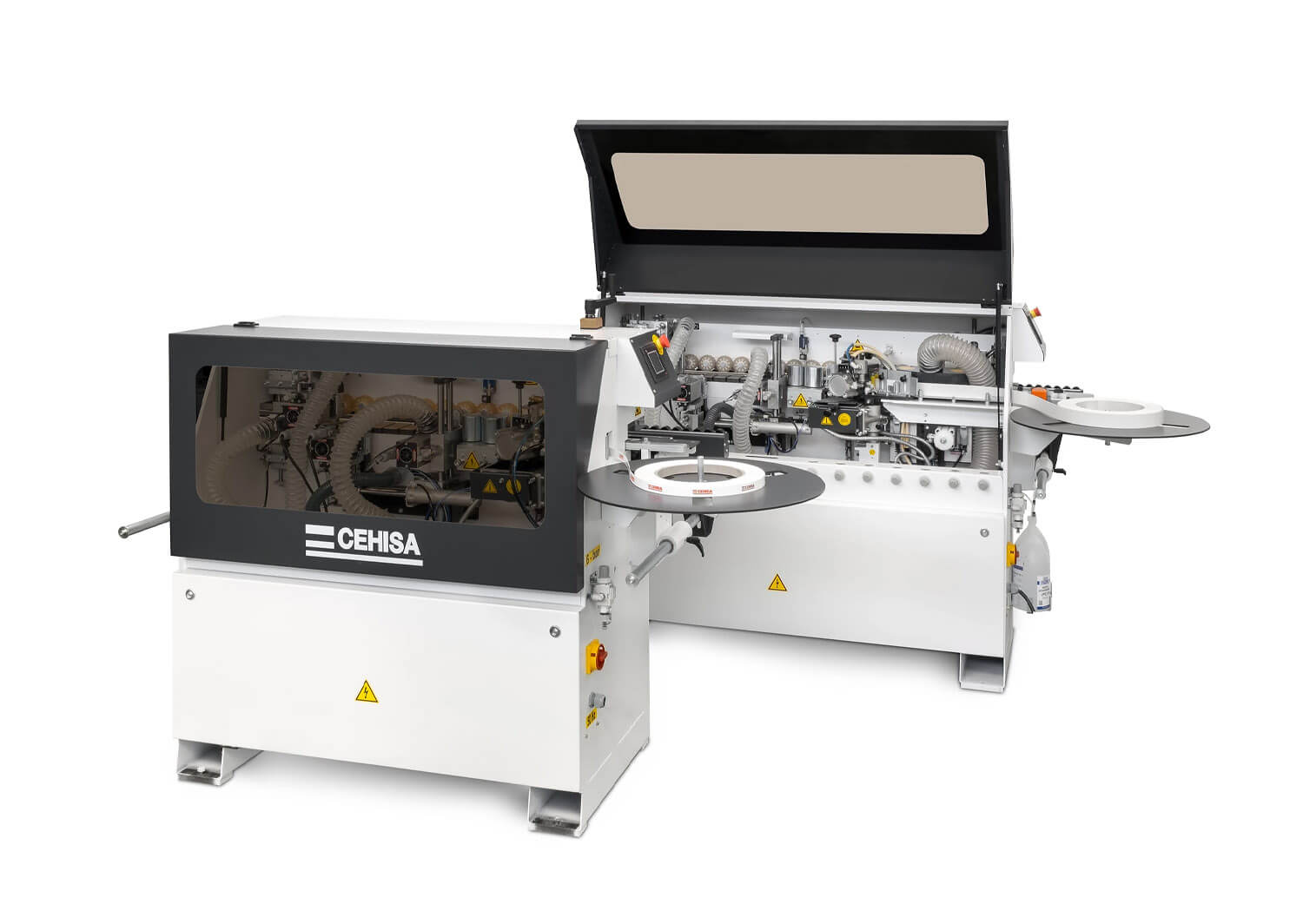

Cehisa OPTIM Series of Compact Edgebanders
$19,000.00
Description
The OPTIM series is the most compact-sized industrial edgebanding machine on the market, providing high performance at a competitive price. It is equipped with an industrial chain with non-stick rubber pads and prismatic guides in the pressure beam. It also can be fitted with DUOMELT®, floating blades and pneumatic positioning ON/OFF in glue scraper and anti-adherent agent spray at entrance.
Read MoreRead Less
Specifications
| Edgebanding material | 0.4 - 2mm (3mm opt.) |
|---|---|
| Panel thickness | 8-50mm |
| Panel length | 200-unlimited |
| Panel width | 75mm-unlimited |
| Feed speed | 5.5m/min |
| Pre-milling cutters height | 30 - 50mm |
| Working air pressure | 6 - 7 kg/cm² |
| Total electrical output | 3.4kW |
| Electrical connection | 3 x 380V / 50Hz |
| Dimensions installed | 2352mm x 1190mm x 1444mm |
| Net weight | 620Kg |
