110 gallon oneida dust collector

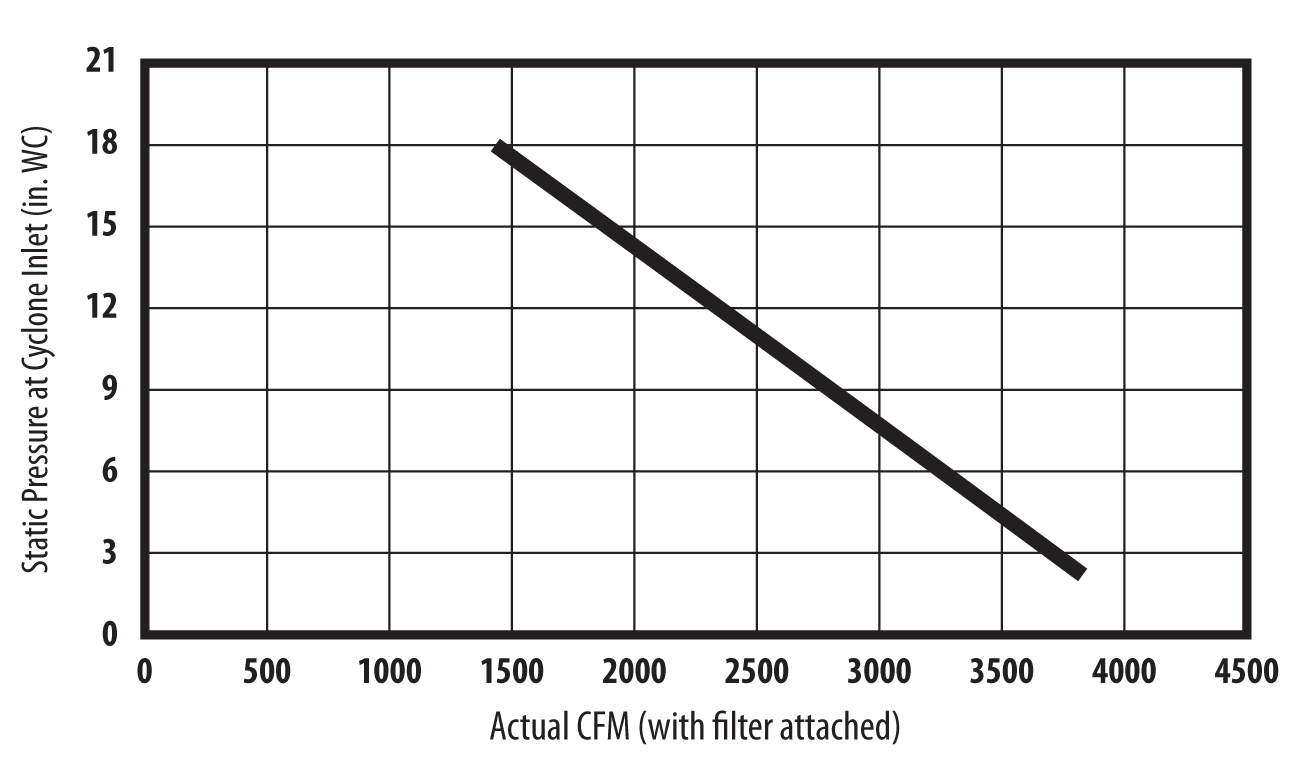

graph describing the relation of static pressure at cyclone inlet against actual cfm for the oneida 10hp dust collector 110 gal.

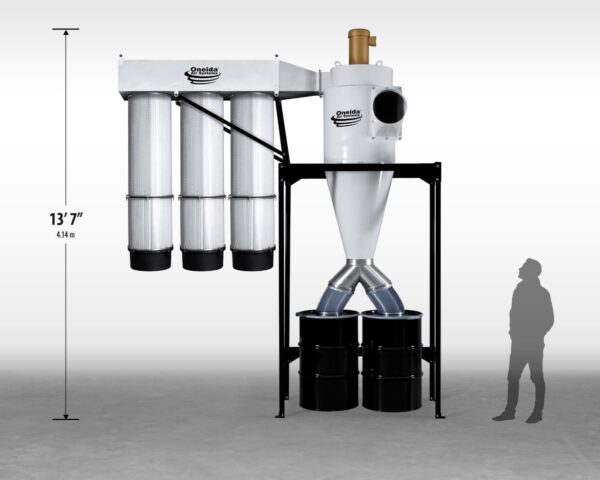

10hp oneida dust collector

Oneida Air 10HP 230V Direct Drive 110 Gal. Cyclone Dust Collector

$11,990.00

Description

Realize the Power of American Manufacturing. Our 10HP Direct Drive system is the workhorse of our industrial line of cyclonic dust collection systems – delivering maximum airflow performance within a compact, quiet, and cost-effective package. Built to last a lifetime using industrial, heavy-gauge steel components, our 10HP is ideal for commercial shops with fixed ductwork and multiple tools in use simultaneously.

Read MoreRead Less

Included Features & Components

  • Industrial 10HP U.S. Made Motor
  • Backward Inclined, Non-Sparking, Cast-Aluminum Impeller
  • High-Efficiency 230V / 3-Phase Power
  • Magnetic Starter with Overload Protector
  • Heavy-Gauge Solid Welded Steel Cyclone Separator with Clean-Out Access Door
  • Modular Stacking Spunbond Cartridge Filters
  • Real-time Filter Efficiency Pressure Gauge
  • Drop-In Acoustic Foam Filter Silencers
  • Industrial Angle Iron Frame Stand
  • Dual 55-Gallon Reinforced Steel Drums
  • 2 Year Limited Warranty
Get a Quote
Get Financing
Continuously High Airflow Performance

  • Your dust collector should perform at peak efficiency at all times to ensure the health, safety, and quality of your work. That’s why Oneida Air Systems uses only the highest quality motors with our dust collection systems. Far superior than the cheap, foreign imported motors used by other manufacturers, our industrial-grade motors are built to last a lifetime.

  • High-efficiency, fan blower motor - Made in USA.
  • Industrial-grade brushless motor designed for continuous duty.
  • Uses 3-phase power for commercial applications.
  • Includes grease fittings for easy maintenance.
  • Low pitch noise level provides ideal operator comfort.
  • Heavy-gauge steel fan housing, full seam welded, built to last a lifetime.
Ultra-High Efficiency Steel Cyclone Separator

  • Features Oneida Air Systems’ unique long-tapered cyclone design that provides maximum pre-separation efficiency compared to the squatter cyclone designs of competitors.

  • Removes up to 99% of fine dust and bulk debris from the airstream, before it reaches the filter.
  • Virtually eliminates filter clogging and suction loss to provide continuous suction performance.
  • Significantly extends the lifespan of the filter and reduces downtime needed for maintenance.
  • Rectangular, neutral-vane inlet with 10" dia. square-to-round adapter.
  • System's inlet and outlet rotate independently at 45 degree increments to suit your shop's needs.
  • Industrial 16 gauge steel construction with full welded, airtight seams.
  • Highly durable, rust preventative, almond-white powder coat finish.
High Quality & Serviceable Filtration

  • Our industrial Direct Drive systems use spunbond polyester cartridge filters that are specifically designed for dust collection applications – providing unbeatable airflow and filtration performance – and are proudly made in the USA!

  • We fully stand by the quality and performance of our filters; each filter is sent to an accredited independent testing lab. Contact us for more information and documentation.
  • Wide-spaced pleating and non-stick PTFE membrane coating facilitates quick and easy maintenance.
  • Patented filter stacking system provides the same filtration area as a single, larger filter, but without the cumbersome weight and installation.
  • Patented internal acoustic foam silencers reduces noise caused by air vibrations by 1–2 dBa.
  • Includes Filter Efficiency Performance Gauge that takes the guesswork out of filter maintenance.
Downloads
Download Filter Efficiency Gauge Installation Instructions
pdf
Download Magnetic Starter Instruction Sheet
pdf
Download Telescoping Stand Instruction Sheet
pdf
Download Owners Manual
pdf

"*" indicates required fields

Thank you for your interest.

Please fill out the form below to receive your free Brochure.

This field is hidden when viewing the form
Category:

Specifications

Horsepower 10HP
Motor Type U.S. TEFC Motor
Motor Service Factor 1.15
Voltage 208-230V
Amperage (Typical) 26.2A-23.8A
Phase (Pre-Wired) 3-Phase
Frequency 60Hz
Power Connector Bare Wiring (three hot wires & ground) - Licensed Electrician Required
Impeller Type Backward inclined, welded carbon steel
Impeller Size 17" Dia.
Real CFM Rating 3,800 Actual CFM at 2.3" S.P.
Noise Level 84-85 dBA @ 10 ft
Filter Type Izumi Axtar Spunbond Media
Filtration Efficiency 99.9% @ 0.2-2.0 microns
MERV Rating MERV 13 ±
Total Filtration Area 465 sq ft
Waste Capacity 110 Gallons
Remote Control Sold Separately
Remote Control Part # Item #AKR220003
Primary Build Materials Cold Rolled Steel
Welding Seam Welded
Static Resistance Rating Conductive (Metal)
Color White
Inlet Size Round: 12" I.D. Square ID: 8"(W) x 14"(H) Square OD: 10-1/2"(W) x 16-1/2"(H)
Outlet Size Square ID: 12-1/2"(W) x 10"(H)
Discharge Size 10" I.D. Flange
Width 122"
Depth 33"
Height 163"
Height to Center of Inlet 131"
Contents Blower Motor Assembly, Magnetic Starter, Fan Housing, Cyclone Separator, Square-to-Round Inlet Adapter, Filter Plenum, 6x Modular Cartridge Filters, Filter Efficiency Gauge, Angle Iron Stand, Pants Wye Splitter, 2x Steel Dust Bins, Hardware
Country of Manufacture United States
Warranty Information 2 Year Limited Warranty
Certifications Complete system is cETLus certified for indoor use
Applicable Patents View Applicable Patents
