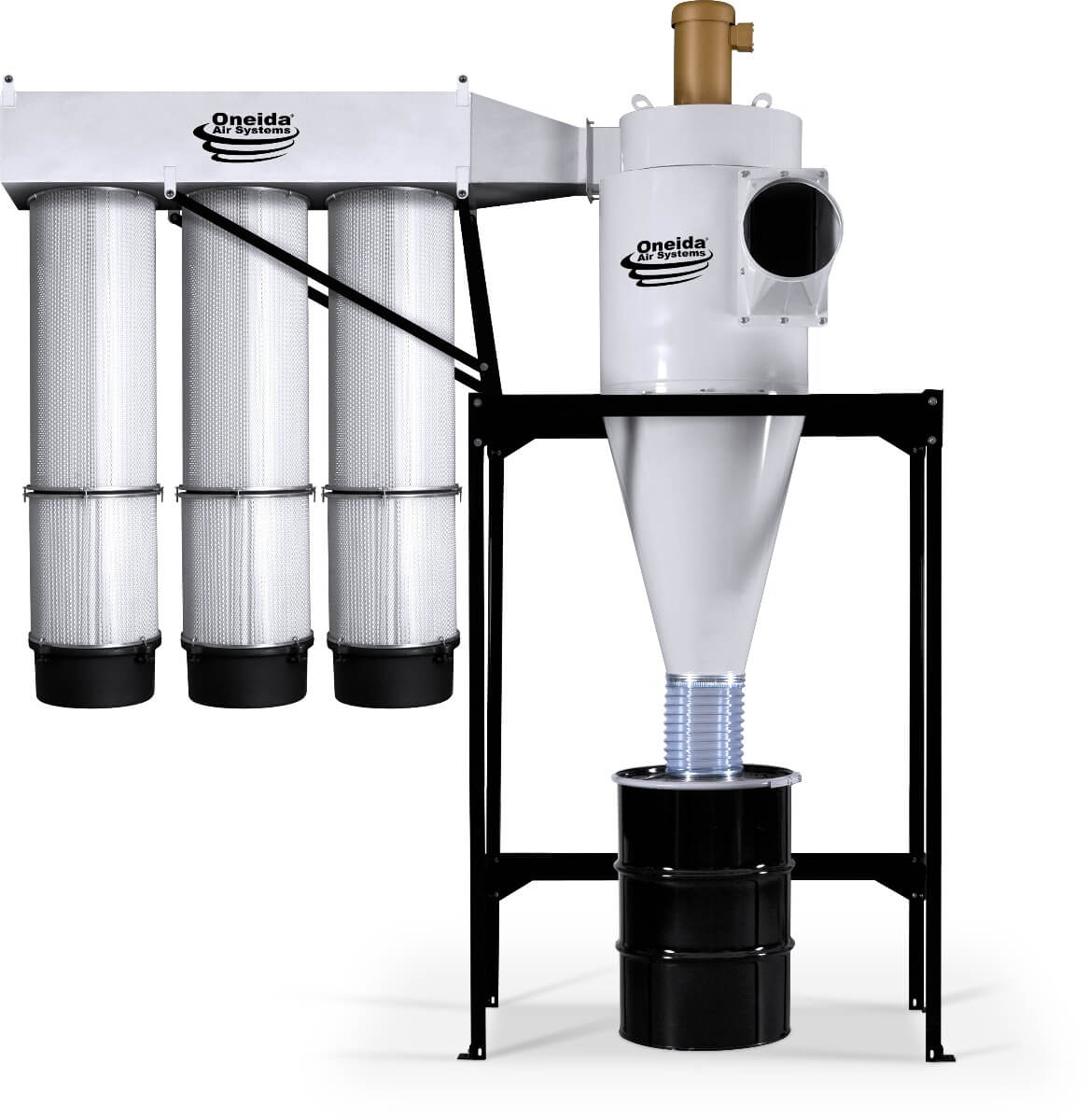

Oneida Air 10HP 230V Direct Drive 55 Gallon Cyclone Dust Collector
Description
Realize the Power of American Manufacturing. Our 10HP Direct Drive system is the workhorse of our industrial line of cyclonic dust collection systems – delivering maximum airflow performance within a compact, quiet, and cost-effective package. Built to last a lifetime using industrial, heavy-gauge steel components, our 10HP is ideal for commercial shops with fixed ductwork and multiple tools in use simultaneously.
Read MoreRead Less
Included Features & Components
- Industrial 10HP U.S. Made Motor
- Backward Inclined, Non-Sparking, Cast-Aluminum Impeller
- High-Efficiency 230V / 3-Phase Power
- Magnetic Starter with Overload Protector
- Heavy-Gauge Solid Welded Steel Cyclone Separator with Clean-Out Access Door
- Modular Stacking Spunbond Cartridge Filters
- Real-time Filter Efficiency Pressure Gauge
- Drop-In Acoustic Foam Filter Silencers
- Industrial Angle Iron Frame Stand
- 55-Gallon Reinforced Steel Drum
- 2 Year Limited Warranty
Specifications
| Horsepower | 10HP |
|---|---|
| Motor Type | U.S. TEFC Motor |
| Motor Service Factor | 1.15 |
| Voltage | 208-230V |
| Voltage | 26.2A-23.8A |
| Phase (Pre-Wired) | 3-Phase |
| Frequency | 60Hz |
| Power Connector | Bare Wiring (three hot wires & ground) - Licensed Electrician Required |
| Impeller Type | Backward inclined, welded carbon steel |
| Impeller Size | 17" Dia. |
| Real CFM Rating | 3,800 Actual CFM at 2.3" S.P. |
| Noise Level | 84-85 dBA @ 10 ft |
| Filter Type | Izumi Axtar Spunbond Media |
| Filtration Efficiency | 99.9% @ 0.2-2.0 microns |
| MERV Rating | MERV 13 ± |
| Total Filtration Area | 465 sq ft |
| Waste Capacity | 55 Gallons |
| Remote Control | Sold Separately |
| Remote Control Part # | Item #AXR220000 |
| Primary Build Materials | Cold Rolled Steel |
| Welding | Seam Welded |
| Static Resistance Rating | Conductive (Metal) |
| Color | White |
| Inlet Size | Round: 12" I.D. Square ID: 8"(W) x 14"(H) Square OD: 10-1/2"(W) x 16-1/2"(H) |
| Outlet Size | Square ID: 12-1/2"(W) x 10"(H) |
| Discharge Size | 10" O.D. |
| Width | 122" |
| Depth | 33" |

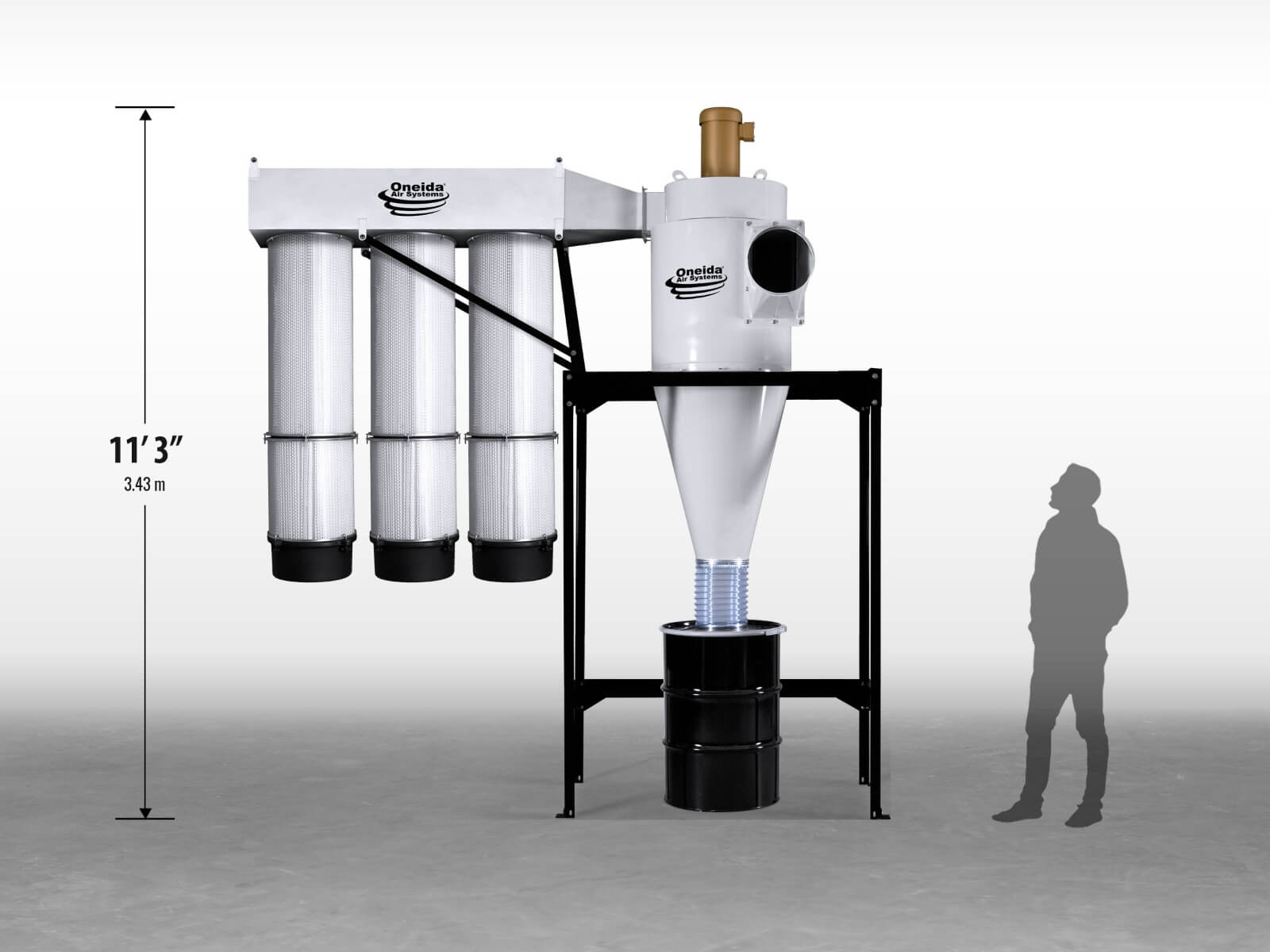

| Height | 135" |
| Height to Center of Inlet | 103.25" |
| Contents | Blower Motor Assembly, Magnetic Starter, Fan Housing, Cyclone Separator, Square-to-Round Inlet Adapter, Filter Plenum, 6x Modular Cartridge Filters, Filter Efficiency Gauge, Angle Iron Stand, Steel Dust Bin, Hardware |
| Country of Manufacture | United States |
| Warranty Information | 2 Year Limited Warranty |
| Certifications | Complete system is cETLus certified for indoor use |
| Applicable Patents | View Applicable Patents |
