PRO Series CNC Router

The future of production equipment is here.
Starting at $28,400.00
Finance for as low as $514.04/month

Description

The CNC Machine That Professionals Trust

Our most popular CNC router, the PRO Series CNC router lineup offers amazing upgrades in technology, durability, and force.

Built to outperform every comparably priced CNC machine on the market, the PRO Series Router is loaded with top-of-the-line components and technology you’d expect to find in machines that cost $80,000 or more. Add in our free lifetime technical support and 100% American-made construction, and you simply won’t find any CNC machine that provides more value.

The PRO Series CNC router features an oversized heavy-duty structural tube steel frame, gantry, and structural tube steel gantry uprights along with an industrial anti-backlash ball screw drive system on EVERY axis. Designed to produce high-quality parts every time whether you are performing nested-based sheet work, MDF Doors, one-off custom machining, or anything in between, the PRO Series gives you everything you need for true production.

The over-sized working area lets you complete any project on a variety of materials including 5 x 5 processing on the 4×8 CNC router and 5×10 CNC router systems.

Perfect for manufacturing, furniture, cabinets, signs, R&D, and even at-home use, the PRO Series has the capabilities to take your production to the next level.

Contact us today to learn more about the ShopSabre PRO Series CNC routers.

Read MoreRead Less
Proudly made and Based in the USA
Lifetime Tech Support
CNC Training For Life
Financing Available



Highlighted Features

  • Italian HSD Electric Fan Cooled Spindle available in 1ph. or 3ph. operation with or without Auto Tool Changer (ATC) Option. (100% Duty Rated)
  • Powered 100% by ball screw drive systems with a Dual Driven Y Axis (Long Axis) and our Anti-Whip Technology Watch our ball screw video!
  • Industry Leading Components including Industrial Digital A/C closed loop brushless servo motors with glass encoder technology and individual drive amplifiers with digital tuning Watch our top servo motor technology video!
  • Industrial Welded, stress-relieved, and Aerospace milled structural steel tube frame construction Watch Aerospace Milling of Frames
  • Industrial structural steel tube gantry uprights and Steel Cross bridge with Milled Mating Surfaces Watch our steel vs aluminum video!
  • High Performance 25MM linear profile guide rails and bearings with Quad Rollers on all axis – Watch Linear Guide Rails
  • ShopSabre State-of-the-art Tool Measure Technology Watch our tool measure video!
  • ShopSabre Re-enforced Z Axis Technology with Tool Plate Stiffeners and Optional Super Z Technology!
  • Quick Release Dust Skirt Technology (Ask about Dust Dock Technology for ATC Systems) – Watch Dust Dock Videos
  • Vectric VCarve PRO CAD/CAM Full License Software
  • Easy-to-learn software with point-and-click technology including AT machine CAD/CAM abilities Watch our control screen video!
  • At Machine Solid State Hard Drive for Easy Job Storage and Machine dedicated high speed multi-axis controller Technology
  • Machine Operator Control Tower with Auto Leveling Feet and Included PC System with full Networking and file management via USB and internet connectivity
  • Free SabreNation Life-Time Tech Support via Phone, Email, and Remote Diagnostic! Watch our support video!
  • Free SabreNation Life-time Training and SabreNation University Access! Get Your CNC Education
  • Included Complete Warranty
  • Quick and Effortless Installation – Machine Ships Fully Assembled with No Installation Assistance Required!
  • MADE IN THE U.S.A. — American Manufactured & Engineered using FEA Software Watch our engineering video!
  • Grow with your business by expanding options that meet your exact needs Watch our expansion equipment video
Read MoreRead Less

Well Equipped

Includes:
  • Aerospace Milled Welded Structural Steel Frame & Structural Steel Gantry Bridge with Steel Tube uprights
  • 3 Axis Ball Screw Drive Technology with ShopSabre Twin Screw Anti-Whip Technology on Y Axis
  • 25MM Linear Guide Rails & Bearings on All Axis
  • Ethernet / Network Ready Machine Controller with at Machine PC & Windows OS
  • Vectric VCarve PRO CAD/CAM Software License
  • AC Digital Closed Loop Servo Motors with Absolute Encoder Technology & Individual Amplifiers with Alarm System. Automation Control of Spindle via G-Code & Control System
  • Professional Wire management system
  • Dust Boot with 4” Port
  • Limit Switches and Boundary Sensing
  • Emergency Stop
  • Auto Tool Measuring Touch Pad
  • Auto Z Height Measuring Touch Pad
  • Surfaced Phenolic Hi-Flow Vacuum Ready Table Top with 4 Independently Controlled Zones

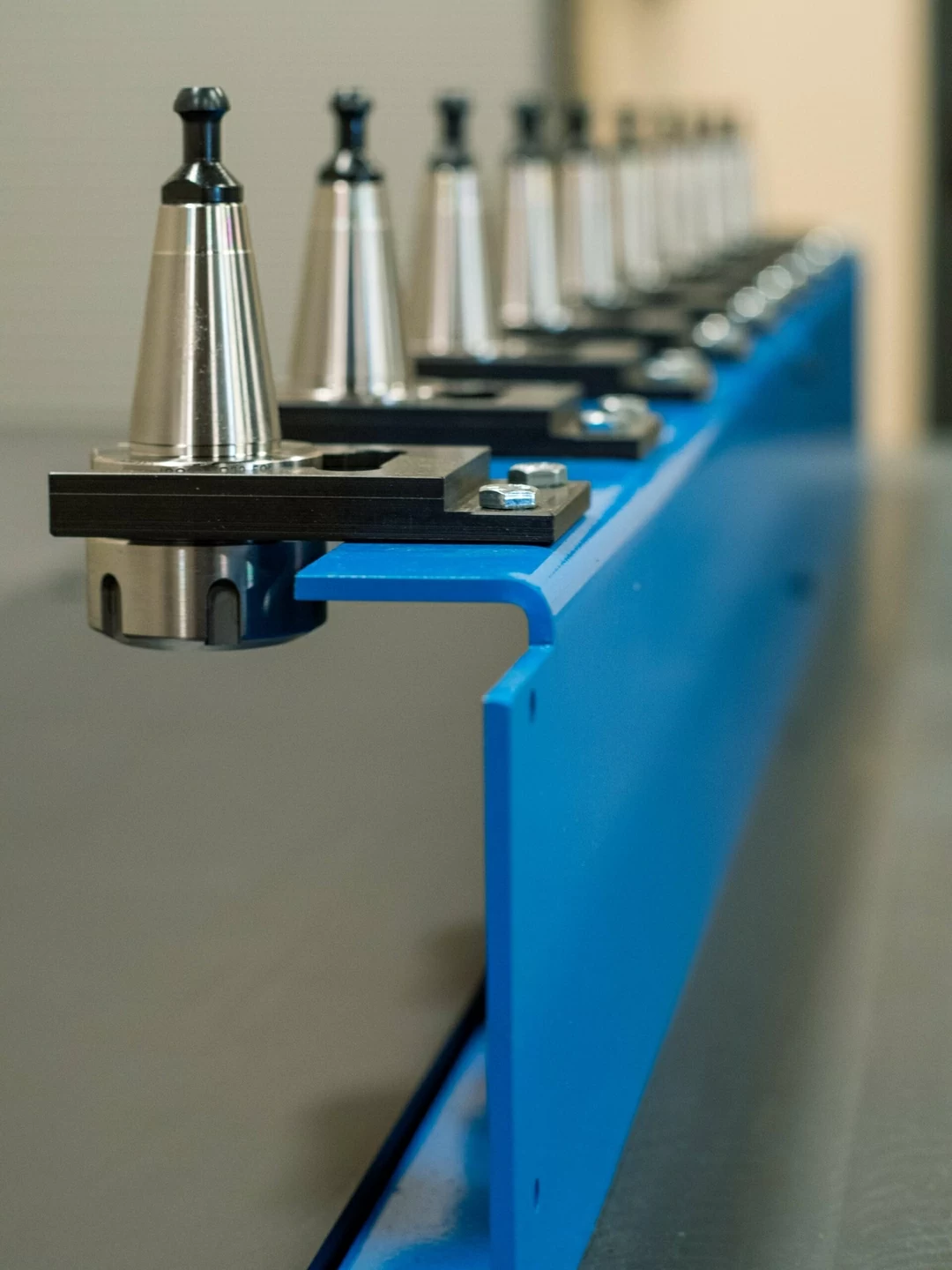

  • 5HP/6HP HSD electric fan cooled Auto Tool Changer with 6 Tool Positions including 6 ISO30 Tool Holders & ER32 Collets
  • Tool Rack, Tool Chuck, and Collet Wrenches & VFD for 1Ph or 3Ph operation
  • Industrial Table Reference Pins (Pop-up Pins)
  • Machine Maintenance Kit
  • ShopSabre SabreNation Support (Phone, email, remote connectivity) for Life of Original Owner
  • SabreNation Training & University Access for life of Original Owner.


PRO 404

PRO 408

PRO 510

Footprint 80" x 85" x 93" 80" x 133" x 93" 93" x 156" x 93"
Cut Area 60" x 50" x 12" 60" x 100" x 12" 72" x 125" x 12"
Z Clearance 12" standard 12" standard 12" standard
Z Travel 16" 16" 16"
Rapid Speed 1200IPM 1200IPM 1200IPM
Repeatability +/-.001" +/-.001" +/-.001"
Drive Motors AC Servo Motors AC Servo Motors AC Servo Motors
Drive System Ball Screw X, Dual Y, & Z axis Ball Screw X, Dual Y, & Z axis Ball Screw X, Dual Y, & Z axis
Well Equipped $40,995.00 $45,995.00 $47,995.00
  Get a Quote Get a Quote Get a Quote

Finance for as low as
$742.01/month
Finance for as low as
$832.51/month
Finance for as low as
$868.71/month

Questions?

Are you not sure which CNC machine is right for you and your production? Schedule a free consultation with one of our in-house experts for personalized, one-on-one guidance.

Free Consultation

PRO Series CNC Router Features

Industrial Precision Frame

ShopSabre CNC Frames are FEA Engineered and Tested constructed from Massive 6x12 Steel Tubes which are Stacked and Welded for added rigidity giving you more floor contact and better vibration control. Internally the large tubes are also cross braces and stiffened to increase the rigidity!

PRO Series CNC Router Features

Digital A/C Servo Motors

ShopSabre PRO Machines come standard with AC Digital Closed Loop Servo Motors for Higher Speeds, Higher Accuracy, and Less Maintenance Self Monitoring Glass Encoder Technology provides extreme performance Top Rated Servo Technology in the World!

PRO Series CNC Router Features

Aero Space Milling Technology

ShopSabre CNC Frames are Run through some of the worlds most advanced processes to assure they are accurate including Precision Milling of contact surfaces for Bearing & Rail Placement along with Ball Screw Mounts. A machine can only be as accurate as its foundation so the Frame on a ShopSabre is built to a tolerance above the competition.

PRO Series CNC Router Features

Ball Screw Technology

ShopSabre PRO Machines come standard with 3 Axis Ball Screw Drives with Y Axis (Long Axis) providing Twin Screws to give you 7 times more rigidity than competing machines and unprecedented performance. Ball Screw Technology used at ShopSabre is the latest in the Industry including which gives you less backlash than Rack and Pinion and thanks to our Whip Free Technology it increases the cutting accuracy and gives you superior edge finishes Ball Screw Technology will outlast most comparable machines by as much as 3 to 4 times longer with very little maintenance required.

PRO Series CNC Router Features

Vacuum Performance

The Vacuum Option on the ShopSabre PRO Series gives you quick and easy zone control with integrated hard pipe connection for increased air flow and the reserve tank built into the frame to assure your vacuum stays consistent!

steel frame of cnc machine
Mitsubishi Servo Motors
Aero Space Milling Technology
Ball Screw Technology
Vacuum Performance
PRO Series CNC Router Features
HiFlow Vacuum Technology

ShopSabre CNC HiFlow Vacuum Technology increases the surface flow by as much as 50% over the competition which in the end results in higher holding pressures and power and better performance. Each Vacuum table on the PRO Series comes Milled from the factory by your machine cutting head reducing the needs for gaskets and bolts to hold your spoil board down and our exclusive HiFlow Grid makes nested manufacturing a breeze

Super Z Technology

ShopSabre PRO Machines is available with the Super Z Technology designed here at ShopSabre CNC. This increases your Z Axis to 16 of Travel while maintaining incredible rigidity thanks in part to our FEA Engineered Stiffener Technology for Tool Plate Strength and our Z Axis Servo Motor Control System and Air Balancer Technology giving you some of the quickest Tool Changes and Drilling cycles in the class!

Precision Linear Guide Technology

ShopSabre CNC uses the latest in CNC Bearing Technology with 25MM Linear Guide Rails and Bearings on all Axis. Each axis has 4 Large Body Quad Bearing rollers with wipers to increase the performance of your machine. These Bearings assure the surfaces stay clean while increasing the machine rigidity under load which results in increased performance and reduced maintenance in large part due to the ball bearing technology!

Industrial Precision Gantry

Just like our Frames, our gantry construction is constructed of massive heavy wall 6x12 Tubes that have been FEA Designed and Tested to provide higher cutting forces and less vibration. The Bearing Spacing on our gantries are larger than competitions machines to better handle the routing forces while increasing cut speeds.

Industrial Gantry Uprights

Like everything on a ShopSabre, the Gantry uprights are also more industrial. Using High Quality North American Structural Steel these uprights increase the bridge clearance to 12 Standard and provide more rigidity for better cutting quality and versatility.

PRO Series CNC Router Details



Software
  • Vectric V-Carve Pro – Features nesting, 2D, 2.5D, 3D CAM capabilities, Vbit carving, sign making, photo importing, 4th axis capabilities, drill cycles, and much more! Watch Video Now
  • Drawing to cut file in under 30 seconds
  • Easy to learn with included training, tutorials, and support
  • Just point and click! Pick cut strategies (Use a large bit to hog out the areas and a small bit to clean up the details
  • Easy-to-learn software with point-and-click technology including AT machine CAD/CAM abilities Watch our control screen video!
  • At Machine Solid State Hard Drive for Easy Job Storage and Machine dedicated high-speed multi-axis controller Technology
  • Machine Operator Control Tower with Auto Leveling Feet and Included PC System with full Networking and file management via USB and internet connectivity

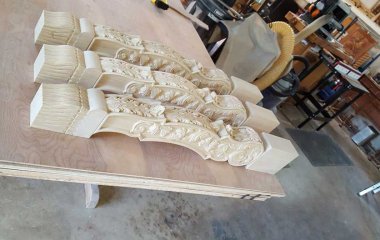

Uses & Applications

The PRO Series has unlimited uses and applications, including:

  • Prototype manufacturing
  • Nested-based manufacturing
  • Sign making
  • MDF Doors
  • Engineering
  • R&D/Job shops
  • Cabinet/door/closet manufacturing
  • Musical instrument manufacturing
  • Medium duty to high production
  • Solid Surface work

View All Applications

Materials Cut

The PRO Series can accurately cut virtually any hard material including:

  • Wood
  • Acrylic
  • Plastic
  • Foam
  • Aluminum
  • Brass
  • and More
Options

Available attachments for ShopSabre CNC router models. Please note that some options may not be available on all models or with other options. Some options may result in limiting the cutting/working areas. Contact us for more details

  • Manual Change HSD Spindles in 4HP or 9.3HP
  • Auto Tool Changer Systems 6 or 12 Positions with HSD Spindles in 5HP ISO, 10HP ISO
  • Phenolic Table Top
  • Full Aluminum T-Slot Table Top
  • Hybrid T-Slot/Vacuum Table Top (Available with Phenolic Upgrade)
  • Hybrid T-Slot/MDF Table Top (Available with Phenolic Upgrade)
  • Vacuum Table with 4 Zones and 8 Table Pipes
  • FPZ Vacuum Pump (Single Phase Options Available)
  • Becker Vacuum Pump (Single Phase Options Available)
  • ShopSabre F4 Single Phase Vacuum Pump (Ask for Details/Limitations)
  • Material Thickness Calibration Touch Pad
  • Table Reference Pins (Pop-Up Pins) for Sheet Alignment Availability dependent on Machine Model
  • 2D/3D Parts Digitizing Touch Probe
  • On-Table 4th Axis /Rotary Indexing Heads
  • Touch Screen Controller
  • Braille/ADA Sign Attachments/Tooling
  • Vision Systems for Registration Mark Reading from Flat Bed Printer
  • Tangential Oscillating Knife System (Reduces working area)
  • Dust Collector Options
  • Wireless Hand Control Pendant with Jog Wheel
  • Multiple Cutting Head Attachments (2 or More Cutting Heads – May Reduce Working Area)
  • Nesting, Cabinet, 3D, 2D, and Photo Recognition Software Packages
  • Laser Sight for Quick Zero Reference
  • Warning Light Bar
  • Private 1 on 1 Training (On-Site and In House)
  • Vacuum Pods
  • Jtech & Opt Marking Laser Options
  • Dust Dock ATC Containment Dust Skirt with Dock
  • Dust Dock Manual Change Containment Dust Skirt
  • Vortex Tooling Packages
  • Tooling Coolant System for Aluminum Cutting
  • Chip Blower for Plastic Cutting
  • UL/CUL by Request
