Note: shown with optional equipment.
The power of a desktop CNC Router

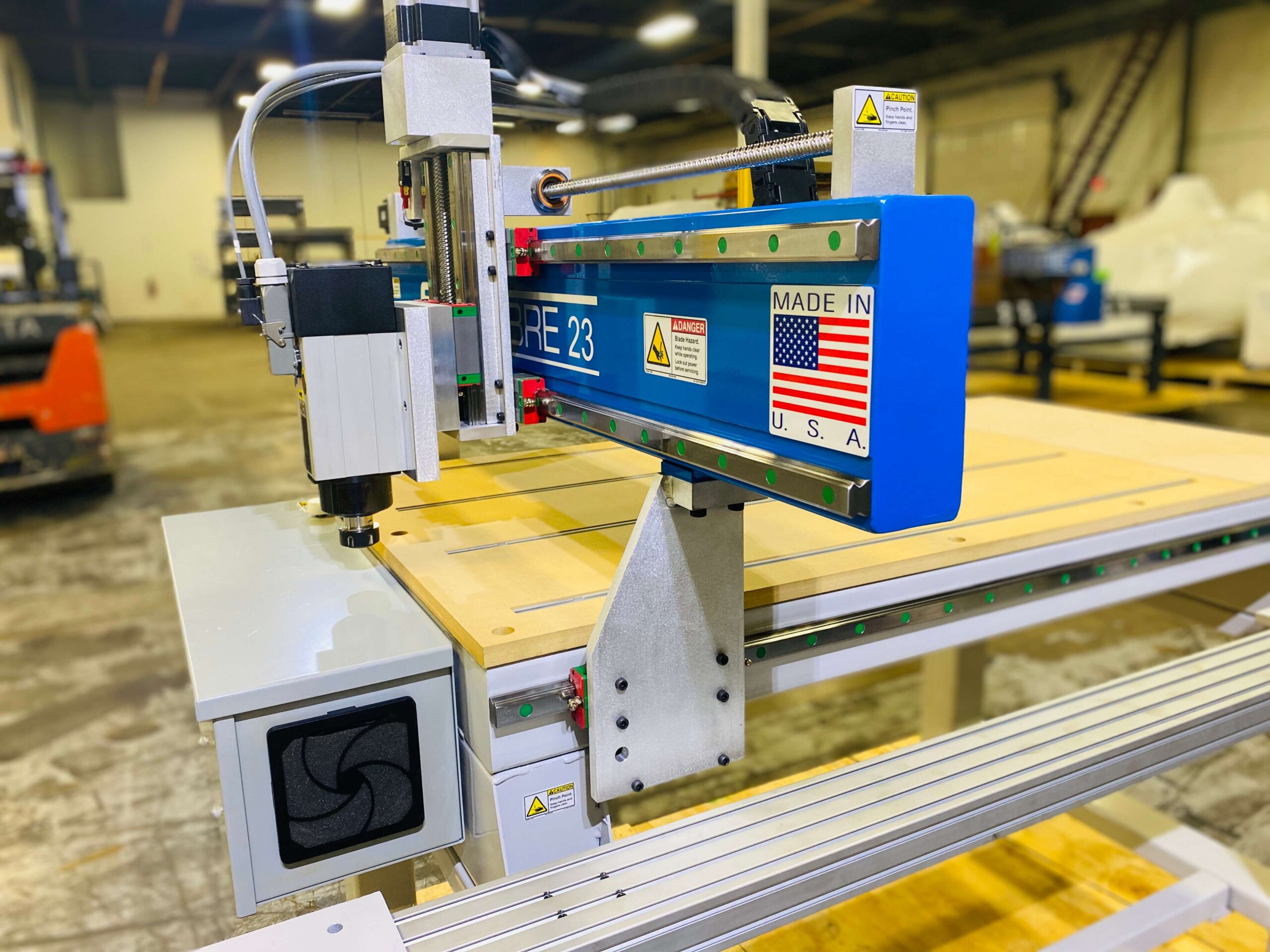

Now you can bring the power and capabilities of an industrial CNC router to your desktop. The ShopSabre 23 is the first desktop CNC router model with the rigid build of an industrial CNC machine. Designed with industrial ball screws on every axis and equipped with the advanced capabilities of ShopSabre control system, you get better motion and more control than any other machine in this price or size range.
Proudly built in the U.S.A., the ShopSabre 23 revolutionizes the hobbyist/desktop market with a high-quality construction that hasn’t previously been available in a machine of this size. The ShopSabre 23 is perfect for educational settings, hobbyist shops, and startup companies where a large machine simply isn’t possible. Complete with our SabreNation lifetime support, this machine is perfect for every user from a novice to the most experienced CNC user. Contact us today to find out how you can get everything you need from a CNC router that fits right on your work bench.
Need Commercial Financing? No problem, with payments as low as $122/month
ShopSabre 23
Footprint:
48.5" x 69" x 34" (Add 22" for optional stand)
Shipping Weight:
850-1100lbs (Depending on Options)
Drive Technology:
XYZ - Ball Screw
Pricing Options:
|
Starting at:
|
$9,495 - $10,495
|
|
Finance for as low as
|
$200/month
|
ShopSabre 23
Footprint:
48.5" x 69" x 34" (Add 22" for optional stand)
Shipping Weight:
850-1100lbs (Depending on Options)
Drive Technology:
XYZ - Ball Screw
Pricing Options:
|
Starting at:
|
$9,495 - $10,495
|
|
Finance for as low as
|
$200/month
|
ShopSabre 23 CNC Router Features
1
2
3
4
5
6
7
8
9
10
1. Industrial Precision Frame
ShopSabre CNC Frames are FEA Engineered and Tested constructed from Massive Structural Steel Tubes which are Welded for added rigidity. Each ShopSabre 23 Series Frame comes with 2 Large Laterally Braced Tube legs to giving you more floor contact and better vibration control.
2. Advanced Drive Motors
ShopSabre 23 Machines come standard with High Torque Industrial Grade Motors for Higher Accuracy, Higher Cutting Torque, and Less Maintenance. Each drive motor is specifically FEA paired to the machine for output and torque to assure you don’t need to add air to the machine to operate regardless of the options you select!
3. Aero Space Milling Technology
ShopSabre CNC Frames are Run through some of the world’s most advanced processes to assure they are accurate including Precision Milling of contact surfaces for Bearing & Rail Placement. A machine can only be as accurate as it’s foundation so the Frame on a ShopSabre is built to a tolerance above the competition.
4. Ball Screw Technology
ShopSabre 23 Machines come standard with 3 Axis Ball Screw Drives giving you 2 times more rigidity than competing machines and unprecedented performance. Ball Screw Technology used at ShopSabre is the latest in the Industry including which gives you less backlash than Rack and Pinion and thanks to the compact design of the ShopSabre 23 there is no concern with whip. The Ball Screw Technology increases the cutting accuracy and gives you superior edge finishes– Ball Screw Technology will outlast most comparable machines by as much as 3 to 4 times longer with very little maintenance required.
5. HiFlow Vacuum Technology
ShopSabre CNC HiFlow Vacuum Technology increases the surface flow by as much as 50% over the competition which in the end results in higher holding pressures and power and better performance. Each Vacuum table on the 23 Series comes Milled from the factory by your machine cutting head reducing the needs for gaskets and bolts to hold your spoil board down and our exclusive HiFlow Grid makes nested manufacturing a breeze.
6. Super Z Technology
ShopSabre 23 Machines is available with the Super Z Technology designed here at ShopSabre CNC. This increases your Z Axis rigidity thanks in part to our FEA Engineered Stiffener Technology for Tool Plate Strength. The Upgraded Z Motor standard makes it easy to upgrade to a higher torque spindle without the need to add an air compressor.
7. Precision Linear Guide Technology
ShopSabre CNC uses the latest in CNC Bearing Technology with 25MM Linear Guide Rails and Bearings on all Axis. Each axis has 4 Large Body Quad Bearing rollers with wipers to increase the performance of your machine. These Bearings assure the surfaces stay clean while increasing the machine rigidity under load which results in increased performance and reduced maintenance in large part due to the ball bearing technology!
8. Industrial Precision Gantry
Just like our Frames, our gantry construction is constructed of massive heavy wall Tube that have been FEA Designed and Tested to provide higher cutting forces and less vibration. The Bearing Spacing on our gantries are larger than competition’s machines to better handle the routing forces while increasing cut speeds.
9. Industrial Gantry Uprights
Like everything on a ShopSabre, the Gantry uprights are also more industrial. Using High Quality North American Plate Aluminum which have been milled and welded these uprights increase the bridge rigidity and provide better cutting quality and versatility.
10. Gantry Overhang
The ShopSabre 23 comes standard with our right-side gantry overhang making it possible to do larger work off the table. This makes adding 4th Axis, doing vertical dovetails, or fixturing a breeze!
Details
- Highlighted Features
- Hardware
- Software
- Uses & Applications
- Materials Cut
- Options
- Relevant Education
- Downloads
Highlighted Features
- Variable RPM 3.25HP 110V Router with Industrial Mounting Bracket and G-Code Control of Router on/off. (HSD Italian Spindle upgrades available)Â
- Industrial ball screw design on X, Y, and Z axis – Watch our ball screw video!
- Industrial High Torque Micro-step drive system (Largest Z Motor in Class for Quicker Response/3D)
- Precision Milled Rigid Structural Steel Tube Gantry Bridge with Plate Aluminum Gantry Uprights and Designed gantry over-hang for advanced machining abilities on Right side for custom fixtures or 4th Axis (Optional)
- Welded One Piece Structural Tube Steel Frame – Watch our steel vs aluminum video!
- High Performance 25MM linear profile guide rails and bearings with Quad Rollers on all axisÂ
- ShopSabre State-of-the-art Tool Measure Technology – Watch our tool measure video!
- ShopSabre Upgraded Z Axis Technology with Tool Plate Stiffeners
- Quick Release Dust Skirt TechnologyÂ
- Vectric VCarve PRO CAD/CAM Full License Software
- Easy-to-learn software with point-and-click technology including AT machine CAD/CAM abilities – Watch our control screen video!
- At Machine Solid State Hard Drive for Easy Job Storage and Machine dedicated high speed multi-axis controller Technology
- Machine Operator Included PC System with full Networking and file management via USB and internet connectivity – Includes Windows OS
- Free SabreNation Life-Time Tech Support via Phone, Email, and Remote Diagnostic! – Watch our support video!
- Free SabreNation Life-time Training and SabreNation University Access!
- Included Complete WarrantyÂ
- Quick and Effortless Installation – Machine Ships Fully Assembled with No Installation Assistance Required!
- MADE IN THE U.S.A. — American Manufactured & Engineered using FEA Software – Watch our engineering video!
- Grow with your business by expanding options that meet your exact needs – Watch our expansion equipment video
Hardware
- ShopSabre CNC Controller Hardware & Software with Computer System for Operation
- Vectric VCarve PRO CAD/CAM Software (Upgrades Available)
- ShopSabre Electronics – (Industrial Robotic Wiring, Wire Protection, Industrial Connectors, Name Brand Manufacturers)
- Machine Mounted Control Box
- MDF Table Top Secured to Steel Table Frame (Upgrades Available)
- 3.25HP Variable RPM Router (Upgrades Available)
- Router Performance package – Includes On/Off Control and CNC Grade Power Cable
- High Definition Digital Microstep Drive System
- Industrial Ball Screw Design on X, Y and Z Axis
- HiWin Rails and Bearings on All Axes
- Rigid Steel Gantry Bridge
- Industrial Grade Electronics
- Dust Skirt with Quick Release Technology
- Limit Switches on All Axis
- Emergency Stop Switch
- Tool Measure Switch for Fast Tool Change
- Lifetime tech support
- At machine file management with Solid State hard drive
- Lift-Gate Unloading for Delivery
Software
- Vectric V-Carve Pro – Features nesting, 2D, 2.5D, 3D CAM capabilities, Vbit carving, sign making, photo importing, 4th axis capabilities, drill cycles, and much more!Â
- Drawing to cut file in under 30 seconds
- Easy to learn with included training, tutorials, and support
- Just point and click! Pick cut strategies (Use a large bit to hog out the areas and a small bit to clean up the details)
- Easy-to-learn software with point-and-click technology including AT machine CAD/CAM abilities –Â
- At Machine Solid State Hard Drive for Easy Job Storage and Machine dedicated high-speed multi-axis controller Technology
- Included PC System with full Networking and file management via USB and internet connectivity
Uses & Applications
- Prototype manufacturing
- Sign making
- Engineering
- R&D/Job shops
- Musical instrument manufacturing
View All Applications
Materials Cut
- Wood
- Acrylic
- Plastic
- Foam
- Aluminum
- Brass
- and More
Options
- Available attachments for ShopSabre CNC router models. Please note that some options may not be available on all models or with other options. Some options may result in limiting the cutting/working areas. Contact us for more details
- Rolling Machine Stand with Locking Casters
- Phenolic Table Top
- Hybrid T-Slot/Vacuum Table Top (Available with Phenolic Upgrade)
- Hybrid T-Slot/MDF Table Top (Available with Phenolic Upgrade)
- Vacuum Table with 1 Zone
- ShopSabre F1 Single Phase Vacuum Pump (Ask for Details/Limitations)
- Material Thickness Calibration Touch Pad
- 2D/3D Parts Digitizing Touch Probe
- 4th Axis /Rotary Indexing Heads
- Braille/ADA Sign Attachments/Tooling
- Rolling Computer Control Stand
- Dust Collector Options
- Wireless Hand Control Pendant with Jog Wheel
- Nesting, Cabinet, 3D, 2D, and Photo Recognition Software Packages
- Laser Sight for Quick Zero Reference
- Warning Light Bar
- Private 1 on 1 Training (On-Site and In House)
See all Accessories and Options
